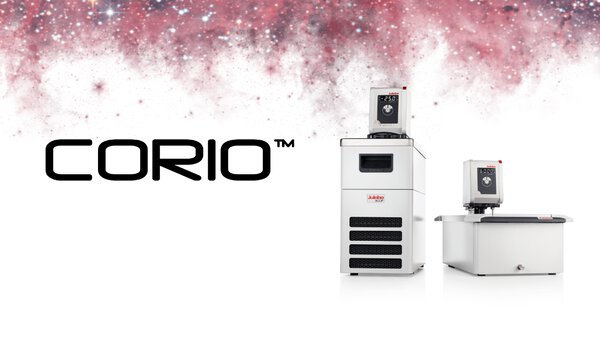

CORIO laboratory circulators
Circulators are an important part of daily work in many laboratories of research institutions and industrial companies worldwide. The JULABO CORIO circulators have been developed with pioneering technologies for these laboratories and are manufactured to the highest quality standards in Germany.
Best price-performance ratio
The CORIO series offers the best price-performance ratio in the basic range of circulator technology. Equipped with all essential core functions, the CORIO circulators are optimized for simple, daily routine work.
Clever operation
The simple and modern design of the CORIO circulators is designed for easy and time-saving operation and provides quick access to all relevant functions. A bright display means that data are always easy to read.
Internal and external temperature control
CORIO C and CD models are the perfect circulators for precise, internal standard temperature applications. Refrigerated circulators in the CORIO CP series expand the range of possible applications with a temperature range from -50 °C to +200 °C. Strong pump performance makes the CP models perfect for use in the simple temperature control of external applications.
Flexible all-rounder
Universal bath attachment clamps for custom containers, bath tanks in various sizes and designs as well as powerful cooling machines make the CORIO a flexible all-rounder in everyday laboratory work. With a wide selection of accessories, all CORIO devices can be adapted to customer-specific applications in a modular and individual way.
CORIO product category
CORIO CD refrigerated / heating circulators
The new generation of laboratory circulators for routine work and standard tasks
Refrigerated / heating circulators of the CORIO series distinguish themselves with a great price-to-performance ratio. They are ideal for all standard tasks and routine work in laboratories and industry.
| Model | CORIO CD-200F | CORIO CD-201F | CORIO CD-300F | CORIO CD-600F |
|---|---|---|---|---|
| Working temperature range (°C) | -20 ... +150 | -20 ... +150 | -25 ... +150 | -35 ... +150 |
| Temperature stability (°C) | ±0.03 | ±0.03 | ±0.03 | ±0.03 |
| Cooling capacity (kW) | 0.22 | 0.22 | 0.31 | 0.6 |
| Heating capacity (kW) | 2 | 2 | 2 | 2 |
| Pump capacity flow rate (l/min) | 15 | 15 | 15 | 15 |
| Pump capacity flow pressure (bar) | 0.35 | 0.35 | 0.35 | 0.35 |
| Model | CORIO CD-601F | CORIO CD-900F | CORIO CD-1000F | CORIO CD-1001F |
|---|---|---|---|---|
| Working temperature range (°C) | -35 ... +150 | -38 ... +150 | -40 ... +150 | -38 ... +100 |
| Temperature stability (°C) | ±0.03 | ±0.03 | ±0.03 | ±0.03 |
| Cooling capacity (kW) | 0.6 | 0.9 | 1 | 1 |
| Heating capacity (kW) | 2 | 2 | 2 | 2 |
| Pump capacity flow rate (l/min) | 15 | 15 | 15 | 15 |
| Pump capacity flow pressure (bar) | 0.35 | 0.35 | 0.35 | 0.35 |
| Model | CORIO CD-310F | CORIO CD-450F | CORIO CD-449F | CORIO CD-1000FW |
|---|---|---|---|---|
| Working temperature range (°C) | -30 ... +150 | -30 ... +150 | -32 ... +150 | -40 ... +150 |
| Temperature stability (°C) | ±0.03 | ±0.03 | ±0.03 | ±0.03 |
| Cooling capacity (kW) | 0.31 | 0.45 | 0.45 | 1 |
| Heating capacity (kW) | 2 | 2 | 2 | 2 |
| Pump capacity flow rate (l/min) | 15 | 15 | 15 | 15 |
| Pump capacity flow pressure (bar) | 0.35 | 0.35 | 0.35 | 0.35 |
CORIO CP refrigerated / heating circulators
with an enhanced pump performance and a temperature range up to +200 °C
Refrigerated circulators from the CORIO CP range are suitable for applications with a temperature range up to +200°C. The enhanced pump performance ensures they are suitable for easy temperature control tasks in combination with external applications.
| Model | CORIO CP-200F | CORIO CP-201F | CORIO CP-300F | CORIO CP-600F |
|---|---|---|---|---|
| Working temperature range (°C) | -20 ... +200 | -20 ... +200 | -25 ... +200 | -35 ... +200 |
| Temperature stability (°C) | ±0.03 | ±0.03 | ±0.03 | ±0.03 |
| Cooling capacity (kW) | 0.2 | 0.2 | 0.3 | 0.6 |
| Heating capacity (kW) | 2 | 2 | 2 | 2 |
| Pump capacity flow rate (l/min) | 8 ... 27 | 8 ... 27 | 8 ... 27 | 8 ... 27 |
| Pump capacity flow pressure (bar) | 0.1 ... 0.7 | 0.1 ... 0.7 | 0.1 ... 0.7 | 0.1 ... 0.7 |
| Model | CORIO CP-601F | CORIO CP-900F | CORIO CP-1000F | CORIO CP-1001F |
|---|---|---|---|---|
| Working temperature range (°C) | -35 ... +200 | -38 ... +200 | -50 ... +200 | -38 ... +100 |
| Temperature stability (°C) | ±0.03 | ±0.03 | ±0.03 | ±0.03 |
| Cooling capacity (kW) | 0.6 | 0.9 | 1 | 1 |
| Heating capacity (kW) | 2 | 2 | 2 | 2 |
| Pump capacity flow rate (l/min) | 8 ... 27 | 8 ... 27 | 8 ... 27 | 8 ... 27 |
| Pump capacity flow pressure (bar) | 0.1 ... 0.7 | 0.1 ... 0.7 | 0.1 ... 0.7 | 0.1 ... 0.7 |
| Model | CORIO CP-310F | CORIO CP-450F | CORIO CP-449F | CORIO CP-1000FW |
|---|---|---|---|---|
| Working temperature range (°C) | -30 ... +200 | -30 ... +200 | -32 ... +200 | -50 ... +200 |
| Temperature stability (°C) | ±0.03 | ±0.03 | ±0.03 | ±0.03 |
| Cooling capacity (kW) | 0.3 | 0.44 | 0.44 | 1 |
| Heating capacity (kW) | 2 | 2 | 2 | 2 |
| Pump capacity flow rate (l/min) | 8 ... 27 | 8 ... 27 | 8 ... 27 | 8 ... 27 |
| Pump capacity flow pressure (bar) | 0.1 ... 0.7 | 0.1 ... 0.7 | 0.1 ... 0.7 | 0.1 ... 0.7 |
CORIO C heating immersion circulators
The new generation of laboratory circulators
The CORIO C immersion circulator is the basic model of the CORIO circulator portfolio. The bath attachment clamp is included in delivery and facilitates mounting of the circulator on any bath tank up to 30 liters.
| Model | CORIO C |
|---|---|
| Working temperature range (°C) | +20 ... +100 |
| Temperature stability (°C) | ±0.03 |
| Heating capacity (kW) | 2 |
| Circulation capacity flow rate (l/min) | 6 |
| Circulation capacity pressure (bar) | 0.1 |
CORIO CD heating immersion circulators
The new generation of laboratory circulators
In addition to the advantages of the CORIO C circulator, the CORIO CD immersion circulator can be equipped with an optional pump set for temperature control of external applications.
| Model | CORIO CD |
|---|---|
| Working temperature range (°C) | +20 ... +150 |
| Temperature stability (°C) | ±0.03 |
| Heating capacity (kW) | 2 |
| Pump capacity flow rate (l/min) | 15 |
| Pump capacity flow pressure (bar) | 0.35 |
CORIO CP heating immersion circulators
Laboratory circulators with an expanded working temperature range up to +200 °C
In addition to the advantages of the CORIO C circulator, the CORIO CD and CP immersion circulator can be equipped with an optional pump set for temperature control of external applications.
| Model | CORIO CP |
|---|---|
| Working temperature range (°C) | +20 ... +200 |
| Temperature stability (°C) | ±0.02 |
| Heating capacity (kW) | 2 |
| Pump capacity flow rate (l/min) | 8 ... 27 |
| Pump capacity flow pressure (bar) | 0.1 ... 0.7 |
CORIO C Open heating bath circulators with transparent bath tanks
Laboratory circulators for internal temperature application at working temperatures from +20 to +100°C
The open heating bath circulators of the new CORIO series feature high-quality transparent bath tanks.
| Model | CORIO C-BT5 | CORIO C-BT9 | CORIO C-BT19 | CORIO C-BT27 |
|---|---|---|---|---|
| Working temperature range (°C) | +20 ... +100 | +20 ... +100 | +20 ... +100 | +20 ... +100 |
| Temperature stability (°C) | ±0.03 | ±0.03 | ±0.03 | ±0.03 |
| Heating capacity (kW) | 2 | 2 | 2 | 2 |
| Circulation capacity flow rate (l/min) | 6 | 6 | 6 | 6 |
| Circulation capacity pressure (bar) | 0.1 | 0.1 | 0.1 | 0.1 |
CORIO C with stainless steel bath tanks
Laboratory circulators for internal temperature application at working temperatures from +20 to +100°C
The open heating bath circulators of the new CORIO series feature high-quality bath tanks made of stainless steel.
| Model | CORIO C-B5 | CORIO C-B13 | CORIO C-B17 | CORIO C-B19 |
|---|---|---|---|---|
| Working temperature range (°C) | +20 ... +100 | +20 ... +100 | +20 ... +100 | +20 ... +100 |
| Temperature stability (°C) | ±0.03 | ±0.03 | ±0.03 | ±0.03 |
| Heating capacity (kW) | 2 | 2 | 2 | 2 |
| Circulation capacity flow rate (l/min) | 6 | 6 | 6 | 6 |
| Circulation capacity pressure (bar) | 0.1 | 0.1 | 0.1 | 0.1 |
| Model | CORIO C-B27 |
|---|---|
| Working temperature range (°C) | +20 ... +100 |
| Temperature stability (°C) | ±0.03 |
| Heating capacity (kW) | 2 |
| Circulation capacity flow rate (l/min) | 6 |
| Circulation capacity pressure (bar) | 0.1 |
CORIO CD with transparent open bath
for internal and external applications at working temperatures from +20 °C to +100 °C
The open heating bath circulators of the new CORIO series feature high-quality transparent bath tanks and pump connections.
| Model | CORIO CD-BT5 | CORIO CD-BT19 | CORIO CD-BT27 |
|---|---|---|---|
| Working temperature range (°C) | +20 ... +100 | +20 ... +100 | +20 ... +100 |
| Temperature stability (°C) | ±0.03 | ±0.03 | ±0.03 |
| Heating capacity (kW) | 2 | 2 | 2 |
| Pump capacity flow rate (l/min) | 15 | 15 | 15 |
| Pump capacity flow pressure (bar) | 0.35 | 0.35 | 0.35 |
CORIO CD heating circulators with stainless steel open bath
for internal and external applications at workingtemperatures up to +150 °C
The open heating bath circulators of the new CORIO series feature high-quality bath tanks made of stainless steel.
| Model | CORIO CD-B5 | CORIO CD-B13 | CORIO CD-B17 | CORIO CD-B19 |
|---|---|---|---|---|
| Working temperature range (°C) | +20 ... +150 | +20 ... +150 | +20 ... +150 | +20 ... +150 |
| Temperature stability (°C) | ±0.03 | ±0.03 | ±0.03 | ±0.03 |
| Heating capacity (kW) | 2 | 2 | 2 | 2 |
| Pump capacity flow rate (l/min) | 15 | 15 | 15 | 15 |
| Pump capacity flow pressure (bar) | 0.35 | 0.35 | 0.35 | 0.35 |
| Model | CORIO CD-B27 | CORIO CD-B33 | CORIO CD-B39 |
|---|---|---|---|
| Working temperature range (°C) | +20 ... +150 | +20 ... +150 | +20 ... +150 |
| Temperature stability (°C) | ±0.03 | ±0.03 | ±0.03 |
| Heating capacity (kW) | 2 | 2 | 2 |
| Pump capacity flow rate (l/min) | 15 | 15 | 15 |
| Pump capacity flow pressure (bar) | 0.35 | 0.35 | 0.35 |
CORIO CD heating circulators
for internal and external temperature tasks with insulated stainless steel bath tanks and working temperatures from +20 °C to +150 °C
for internal and external temperature applications with stainless steel bath tanks and working temperatures from +20 °C to +150 °C
| Model | CORIO CD-BC4 | CORIO CD-BC6 | CORIO CD-BC12 | CORIO CD-BC26 |
|---|---|---|---|---|
| Working temperature range (°C) | +20 ... +150 | +20 ... +150 | +20 ... +150 | +20 ... +150 |
| Temperature stability (°C) | ±0.03 | ±0.03 | ±0.03 | ±0.03 |
| Heating capacity (kW) | 2 | 2 | 2 | 2 |
| Pump capacity flow rate (l/min) | 15 | 15 | 15 | 15 |
| Pump capacity flow pressure (bar) | 0.35 | 0.35 | 0.35 | 0.35 |
CORIO CP heating circulators
Laboratory circulators with an expanded working temperature range up to +200 °C
In addition to the advantages of the CORIO C circulator, the CORIO CD and CP immersion circulator can be equipped with an optional pump set for temperature control of external applications.
| Model | CORIO CP-BC4 | CORIO CP-BC6 | CORIO CP-BC12 | CORIO CP-BC26 |
|---|---|---|---|---|
| Working temperature range (°C) | +20 ... +200 | +20 ... +200 | +20 ... +200 | +20 ... +200 |
| Temperature stability (°C) | ±0.02 | ±0.02 | ±0.02 | ±0.02 |
| Heating capacity (kW) | 2 | 2 | 2 | 2 |
| Pump capacity flow rate (l/min) | 8 ... 27 | 8 ... 27 | 8 ... 27 | 8 ... 27 |
| Pump capacity flow pressure (bar) | 0.1 ... 0.7 | 0.1 ... 0.7 | 0.1 ... 0.7 | 0.1 ... 0.7 |
