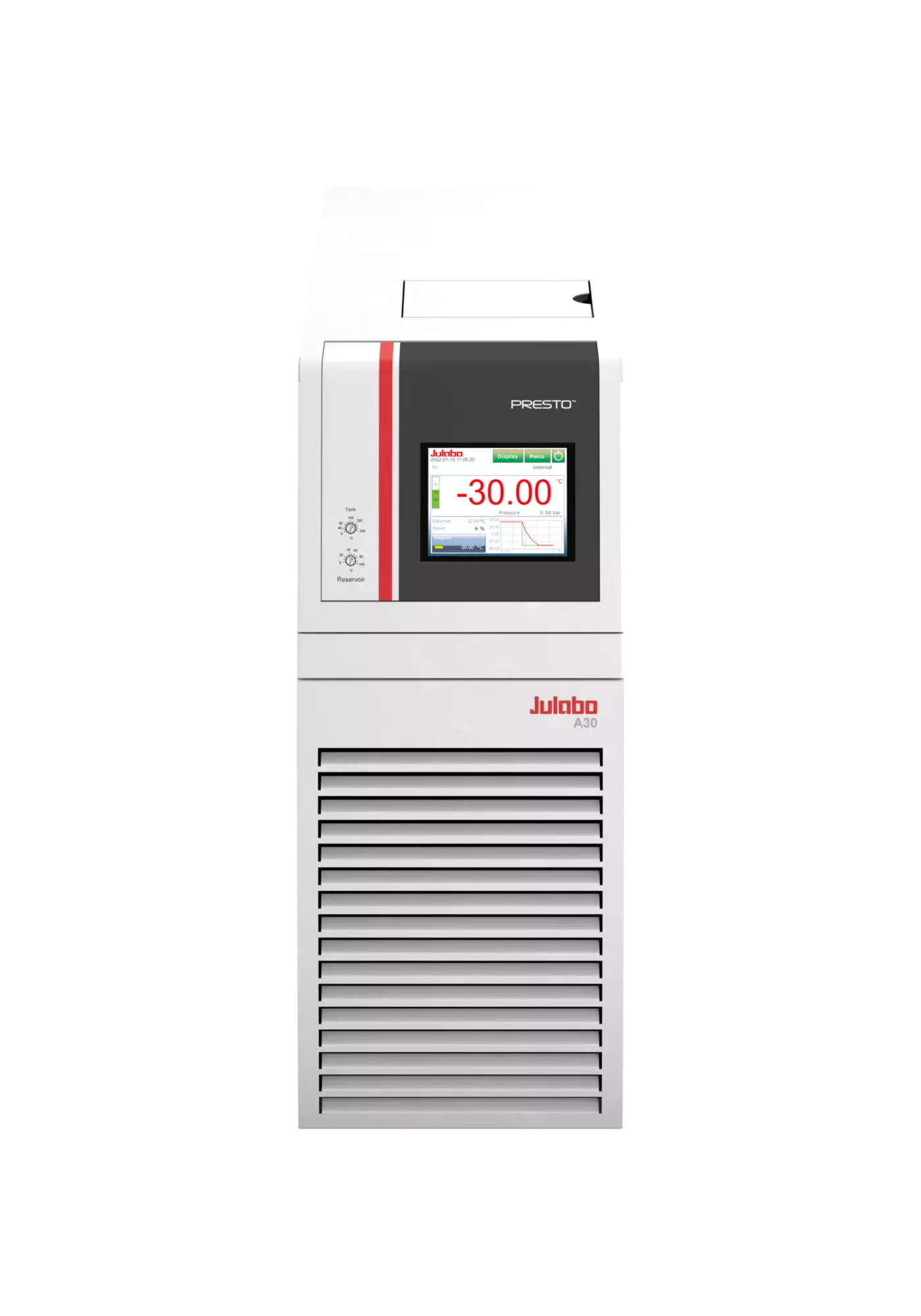

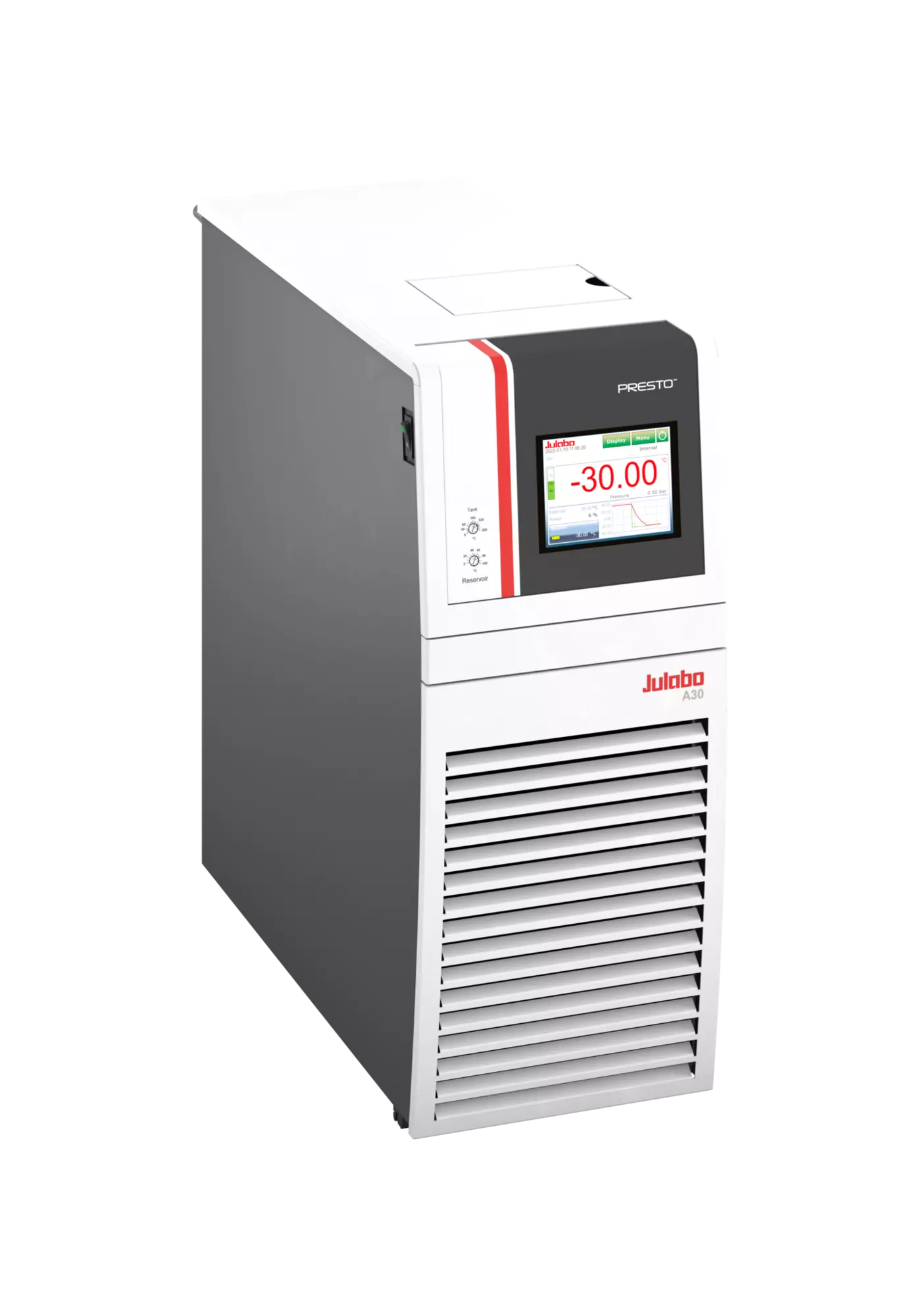

PRESTO A30 Process system

Compact process systems down to -45 °C

The PRESTO A30 is JULABO's smallest process system and combines high performance and a very compact design with all the advantages of the PRESTO series for a working temperature range from -30 °C to +250 °C.

The highly dynamic temperature control systems PRESTO are designed for high-precision temperature control for a wide range of applications such as reactor vessels or material stress tests. Moreover, by using efficient components, the process systems can compensate exothermic and endothermic reactions exceptionally fast. Permanent internal monitoring and self-lubricating pumps ensure a long life-time. In addition, numerous interfaces offer many remote control possibilities across networks or for integration into higher-level control systems.

Performance data depends on the mains voltage in the country of use. Please select:

Country of use | Mains voltage | Plug | JULABO voltage version code
A30
Order No. 9420300.03
Working temperature range -30 ... +250 °C
Temperature stability ±0.01 ... ±0.05 °C
Heating capacity 2.7 kW
Cooling capacity
Medium: Ethanol
°C 20 0 -10 -20 -30
kW* 0.5
0.4
0.3
0.2
0.02
Refrigerant R452A
Global Warming Potential 2140
Filling weight 340 g
Carbon dioxide equivalent 0.7276 t
* Performance specifications measured in accordance with DIN 12876. Cooling capacities up to 20 °C measured with ethanol; over 20 °C with thermal oil unless otherwise specified. Performance specifications apply at an ambient temperature of 20 °C. Performance values may differ with other bath fluids.
Pump capacity flow rate 25 l/min
Pump capacity flow pressure 0.5 bar
Dimensions
(W × L × H)
25 x 59 x 62 cm
Arrange callback Accessory

Product Features

  • Heating capacity up to 2.7 kW
  • Temperature stability ±0.01 °C ... ±0.05 °C
  • Alarm output
  • Ports for USB, Ethernet, RS232, Modbus
  • Built-in 5.7’’ industrial color touchscreen
  • External Pt100 sensor connection
  • Second external Pt100 sensor connection (accessory)
  • Connections for USB, Ethernet, RS232, and Alarm output
  • Analog connections, RS485, Profibus DP (accessory)
  • Removable ventilation grid
  • RS232
  • RS485 (Accessory)
  • Profibus DP (Accessory)
Dimensions and volumes
Dimensions
(W × L × H)
25 x 59 x 62 cm
Internal usable expansion volume 1.5 l
Minimal process volume 2.4 l
Active heat exchanger volume 1.4 l
Weight 62 kg
Pump connections M24x1.5 male
Temperature values
Working temperature range -30 ... +250 °C
Temperature stability ±0.01 ... ±0.05 °C
Setting the resolution of the temperature display 0.01 °C
Temperature display resolution 0.01 °C
Ambient temperature +5 ... +40 °C

Performance data depends on the mains voltage in the country of use. Please select:

Country of use | Mains voltage | Plug | JULABO voltage version code
Performance values
Heating capacity 2.7 kW
Cooling capacity
Medium: Ethanol
°C 20 0 -10 -20 -30
kW* 0.5
0.4
0.3
0.2
0.02
Refrigerant R452A
Global Warming Potential 2140
Filling weight 340 g
Carbon dioxide equivalent 0.7276 t
* Performance specifications measured in accordance with DIN 12876. Cooling capacities up to 20 °C measured with ethanol; over 20 °C with thermal oil unless otherwise specified. Performance specifications apply at an ambient temperature of 20 °C. Performance values may differ with other bath fluids.
Pump capacity flow rate 25 l/min
Pump capacity flow pressure 0.5 bar
Viscosity max. 50 cSt
Power consumption 15 A
Cooling
Cooling of compressor Air
Other
Sound pressure level 54 dbA
Classification
according to DIN12876-1
Classification III (FL)
IP Code
according to IEC 60529
IP 21
Pump type Centrifugal Pump (Magnetically coupled)
Electronics
Interfaces Alarm output / Ethernet / Modbus / Profibus optional / REG/EPROG optional / RS232 / RS485 optional / SD memory card / Standby-Input optional / USB
External pt100 sensor connection integrated
2nd external Pt100 sensor connection not available
Integrated programmer 8x60 steps
Temperature control ICC
Absolute temperature calibration 3 Point Calibration
Temperature display 5.7" TFT Touchscreen
Temperature setting Touchscreen
Available voltage versions
9420300.03 200-230V/50Hz (Schuko Plug - CEE 7/4 Plug Type F) (R452A)
9420300.04 230V/50Hz (UK Plug Type BS1363A) (R452A)
9420300.05 230V/50Hz (CH Plug Type SEV 1011) (R452A)
9420300.14 208V/60Hz (Nema N6-20 Plug) (R449A)

Pump capacity

Heat-up time

chart_hu-A30 Medium: Thermal HL

Cool-down time

chart_cd-A30 Medium: Thermal HL

Accessory for PRESTO A30

Contact expert

We would also be happy to send you our printed catalogs and brochures by post.


Request brochure

Benefits

  • TCF
    Convenience for several users
    Administrator level for customizing instrument settings, user levels with limited permissions for fast and safe defined access, password protection, all levels adjustable
  • ACC
    100 % Cooling capacity
    ‘Active Cooling Control’ for cooling available throughout the entire working temperature range, fast cool-down even at higher temperatures
  • ICC
    Intelligent temperature control.
    Intelligent cascade control - automatic and self-optimizing adaptation of the PID control parameters with external stability of +/- 0.05 °C.
  • TCF
    Full control
    ‘Temperature Control Features’, for individual optimization, access to all important control parameters, additional settings for band limit, limits, co-speedfactor etc.
