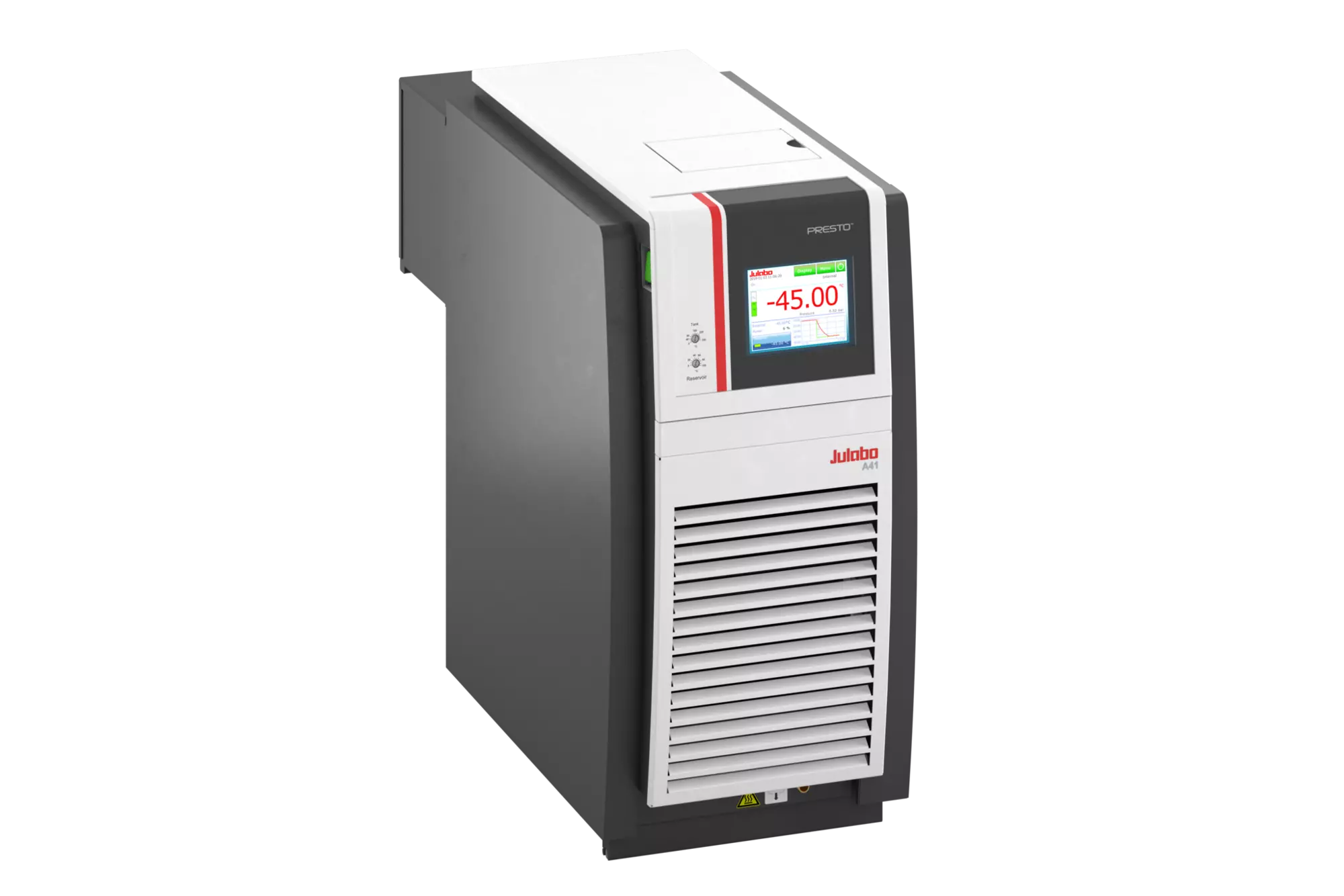

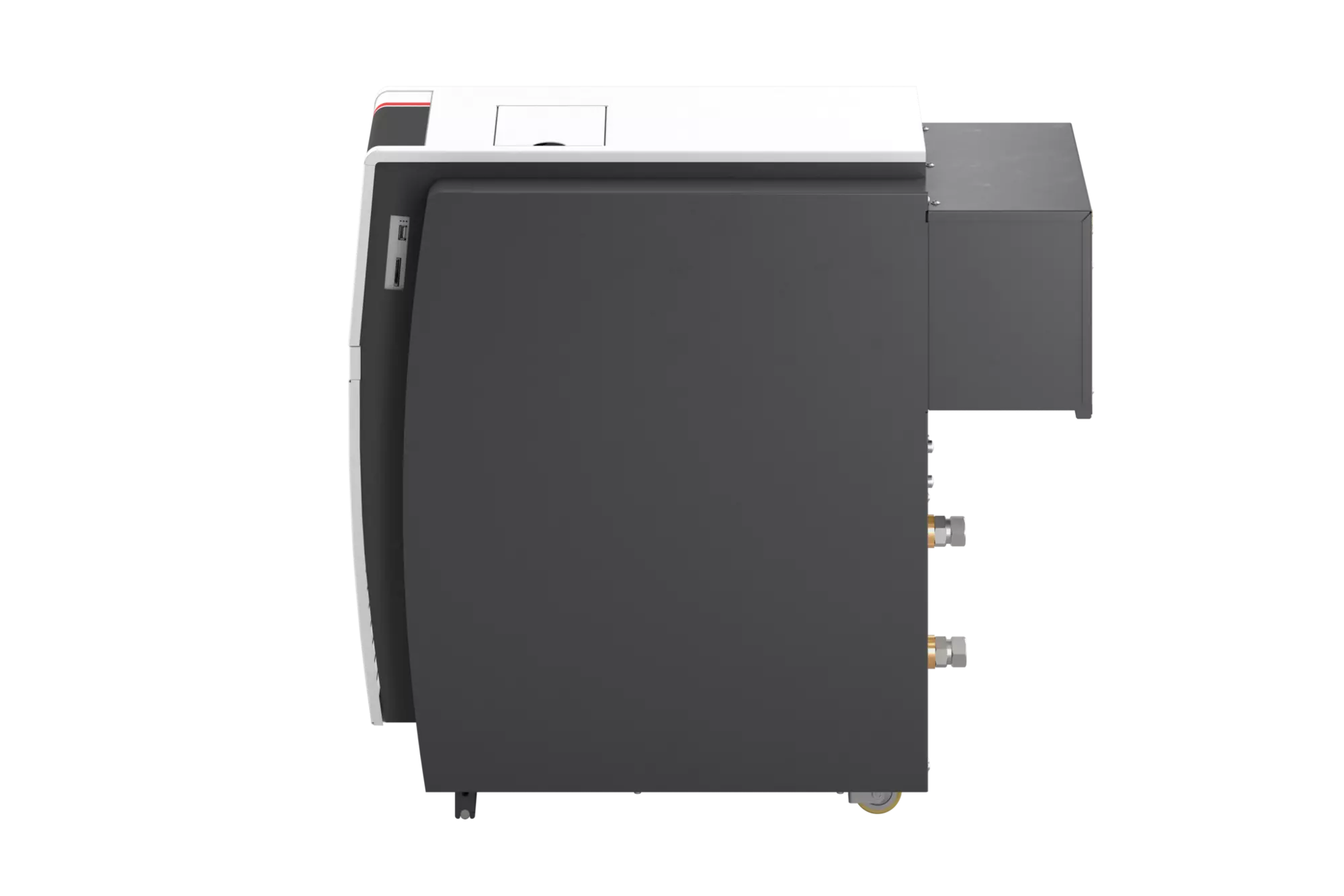

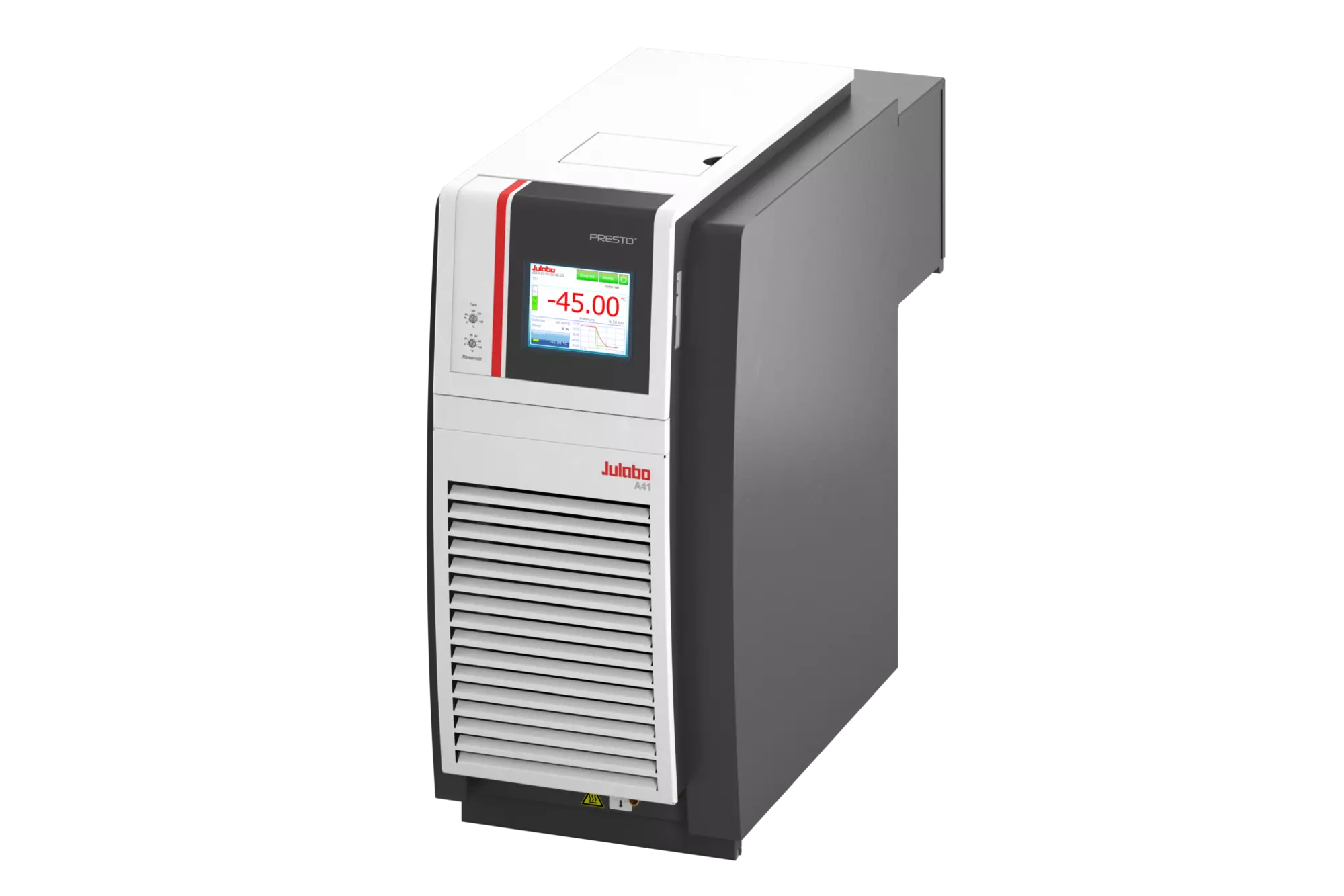

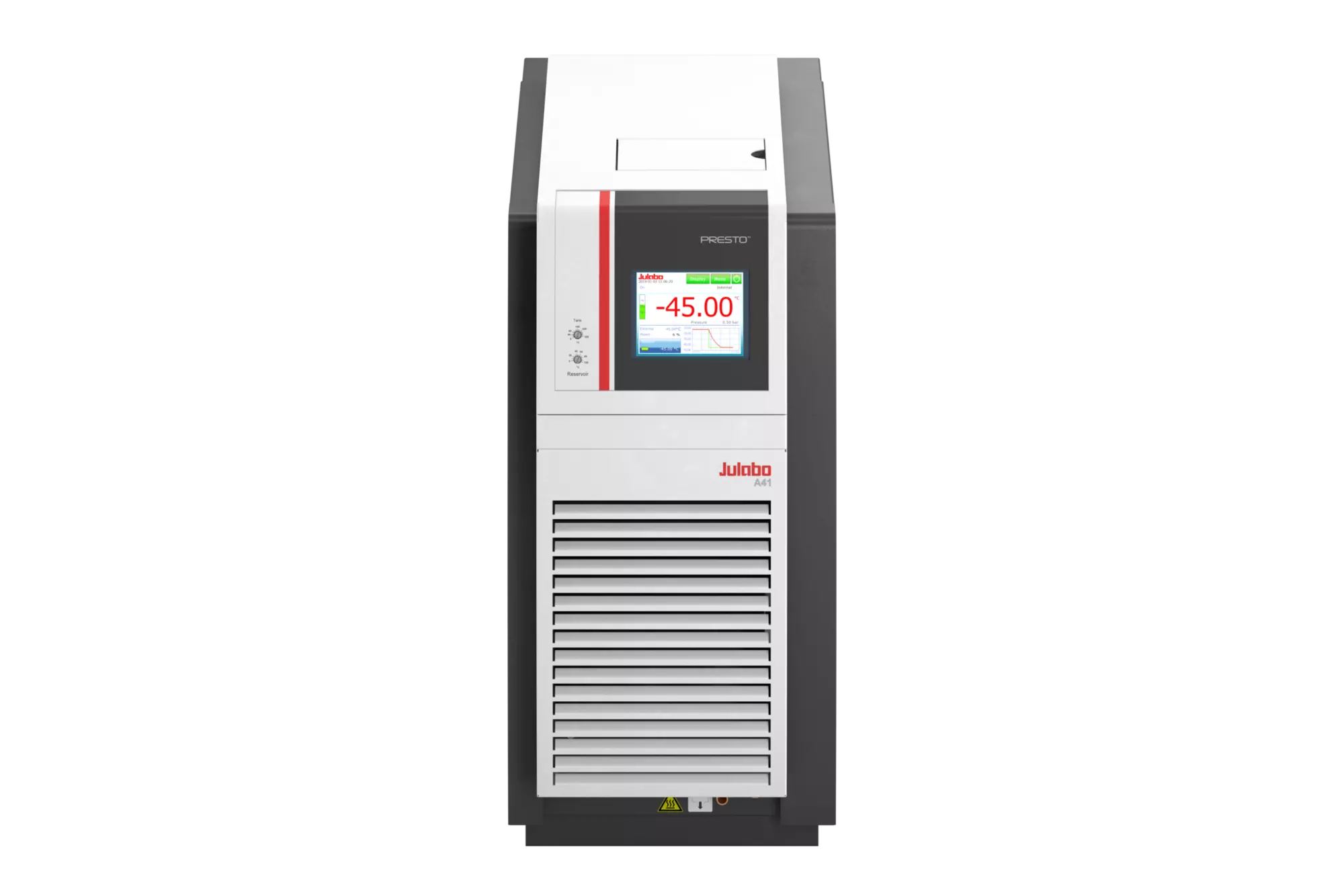

PRESTO A41 Process system
new

Compact process systems down to -45 °C

JULABO's air-cooled PRESTO A41 process system uses environmentally friendly, natural refrigerant. It combines high performance and a very compact design with all the advantages of the PRESTO series for a working temperature range from -45 °C to +250 °C.

The highly dynamic temperature control systems PRESTO are designed for high-precision temperature control for a wide range of applications such as reactor vessels or material stress tests. Moreover, by using efficient components, the process systems can compensate exothermic and endothermic reactions exceptionally fast. Permanent internal monitoring and self-lubricating pumps ensure a long life-time. In addition, numerous interfaces offer many remote control possibilities across networks or for integration into higher-level control systems.

Performance data depends on the mains voltage in the country of use. Please select:

Country of use | Mains voltage | Plug | JULABO voltage version code
A41
Order No. 9420411.N1.03
Working temperature range -45 ... +250 °C
Temperature stability ±0.01 ... ±0.05 °C
Heating capacity 2.7 kW
Cooling capacity
Cooling capacity 1 Medium: Ethanol
°C 20 10 0 -10 -20 -30 -40
kW* 1.47
1.45
1.26
0.87
0.56
0.39
0.19
Cooling capacity 2 Medium: Ethanol
°C 20 10 0 -10 -20 -30 -40
kW* 1.33
1.31
1.24
0.84
0.46
0.31
0.07
Cooling capacity 3 Medium: Thermal HL60
°C 250 200 20 0 -20 -40
kW* 1.43
1.32
1.32
1.04
0.38
0.06
Refrigerant R1270
Global Warming Potential 2
Filling weight 120 g
Carbon dioxide equivalent 0.00024 t
* Performance specifications measured in accordance with DIN 12876. Cooling capacities up to 20 °C measured with ethanol; over 20 °C with thermal oil unless otherwise specified. Performance specifications apply at an ambient temperature of 20 °C. Performance values may differ with other bath fluids.
Cooling capacity 1 = capacity at minimum pump level, cooling capacity 2 = capacity at maximum pump level
Pump capacity flow rate 22 ... 51 l/min
Pump capacity flow pressure 0.3 ... 1.6 bar
Dimensions
(W × L × H)
33 x 75 x 67 cm
Arrange callback Accessory

Product Features

  • Heating capacity up to 2.7 kW
  • Temperature stability ±0.01 °C ... ±0.05 °C
  • Alarm output
  • Built-in 5.7’’ industrial color touchscreen
  • External Pt100 sensor connection
  • Second external Pt100 sensor connection (accessory)
  • Analog connections, RS485, Profibus DP (accessory)
  • Removable ventilation grid
  • Pump pressure up to 1.6 bar, max. flow rate 50 l/min
Dimensions and volumes
Dimensions
(W × L × H)
33 x 75 x 67 cm
Internal usable expansion volume 2.7 l
Minimal process volume 3.5 l
Active heat exchanger volume 1.7 l
Weight 80 kg

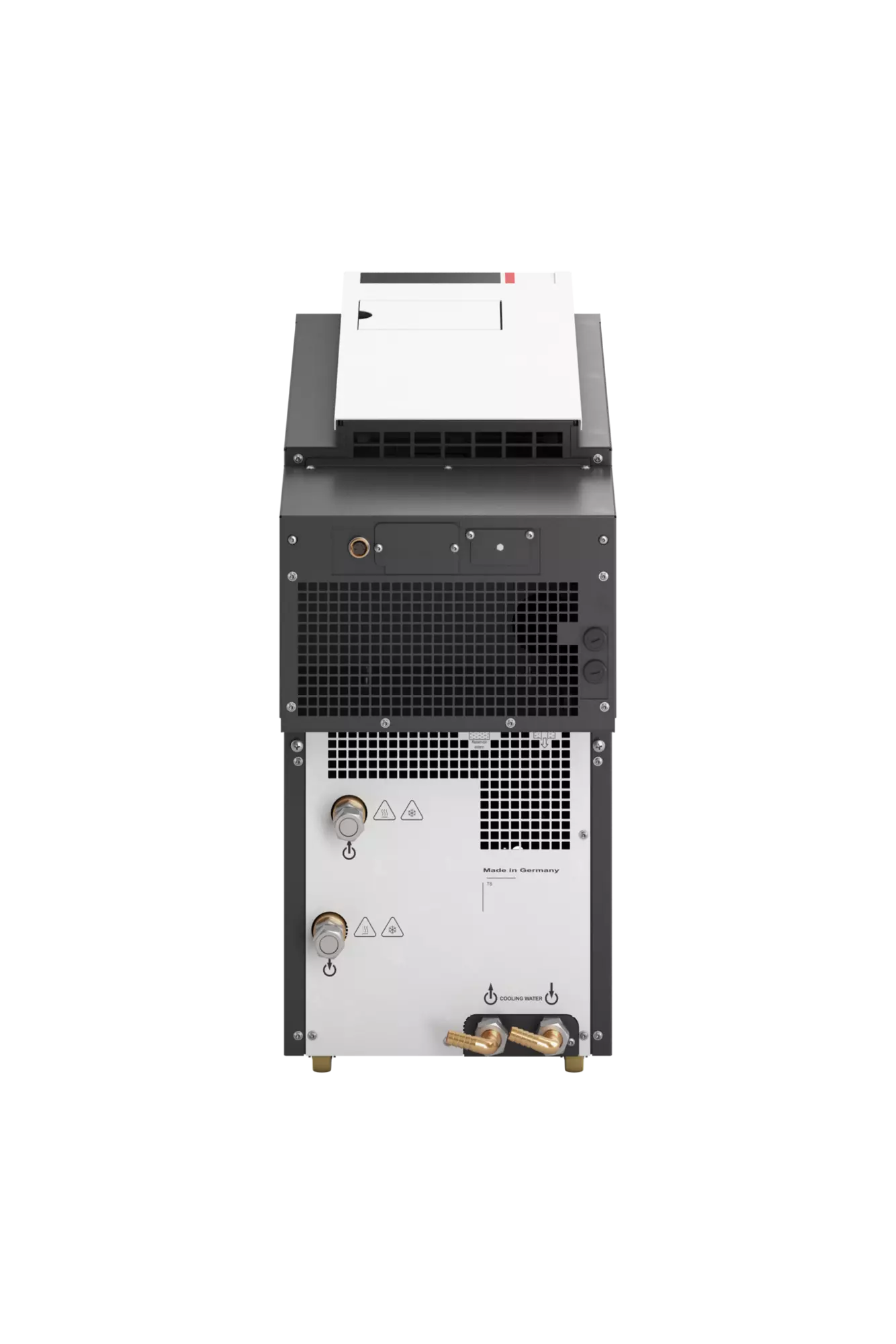

Pump connections M24x1.5 male
Temperature values
Working temperature range -45 ... +250 °C
Temperature stability ±0.01 ... ±0.05 °C
Setting the resolution of the temperature display 0.01 °C
Temperature display resolution 0.01 °C
Ambient temperature +5 ... +40 °C

Performance data depends on the mains voltage in the country of use. Please select:

Country of use | Mains voltage | Plug | JULABO voltage version code
Performance values
Heating capacity 2.7 kW
Cooling capacity
Cooling capacity 1 Medium: Ethanol
°C 20 10 0 -10 -20 -30 -40
kW* 1.47
1.45
1.26
0.87
0.56
0.39
0.19
Cooling capacity 2 Medium: Ethanol
°C 20 10 0 -10 -20 -30 -40
kW* 1.33
1.31
1.24
0.84
0.46
0.31
0.07
Cooling capacity 3 Medium: Thermal HL60
°C 250 200 20 0 -20 -40
kW* 1.43
1.32
1.32
1.04
0.38
0.06
Refrigerant R1270
Global Warming Potential 2
Filling weight 120 g
Carbon dioxide equivalent 0.00024 t
* Performance specifications measured in accordance with DIN 12876. Cooling capacities up to 20 °C measured with ethanol; over 20 °C with thermal oil unless otherwise specified. Performance specifications apply at an ambient temperature of 20 °C. Performance values may differ with other bath fluids.
Cooling capacity 1 = capacity at minimum pump level, cooling capacity 2 = capacity at maximum pump level
Pump capacity flow rate 22 ... 51 l/min
Pump capacity flow pressure 0.3 ... 1.6 bar
Viscosity max. 50 cSt
Power consumption 16 A
Cooling
Cooling of compressor 1-stage Air
Other
Sound pressure level 60 dbA
Classification
according to DIN12876-1
Classification III (FL)
IP Code
according to IEC 60529
IP 20
Pump type Centrifugal Pump (Magnetically coupled)
Electronics
Interfaces Alarm output / Ethernet / Modbus / Profibus optional / REG/EPROG optional / RS232 / RS485 optional / SD memory card / Standby-Input optional / USB
External pt100 sensor connection integrated
2nd external Pt100 sensor connection accessory
Integrated programmer 8x60 steps
Temperature control ICC
Absolute temperature calibration 3 Point Calibration
Temperature display 5.7" TFT Touchscreen
Temperature setting Touchscreen
Available voltage versions
9420411.N1.03 230V/50Hz (Schuko Plug - CEE 7/4 Plug Type F) (R1270)
