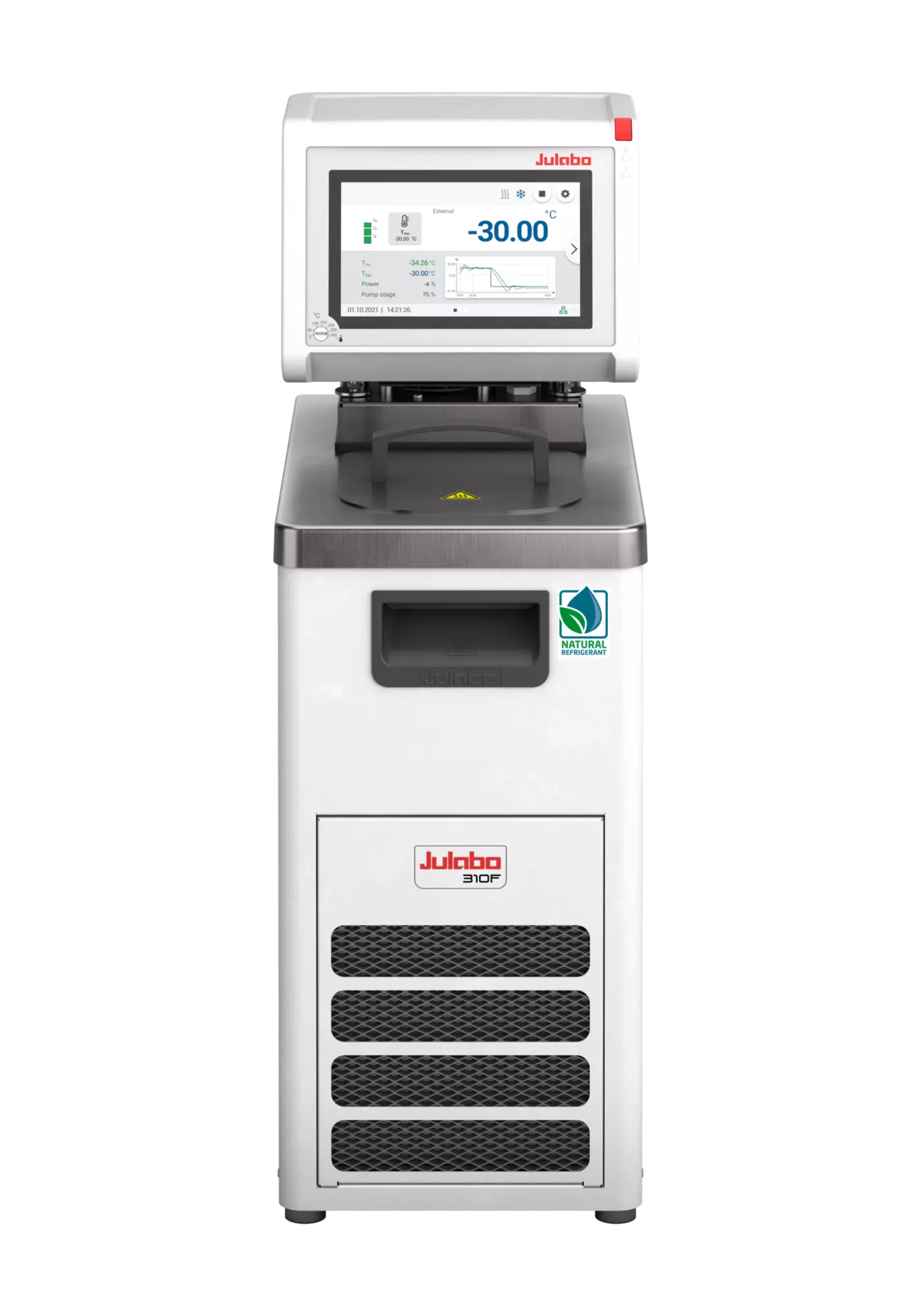

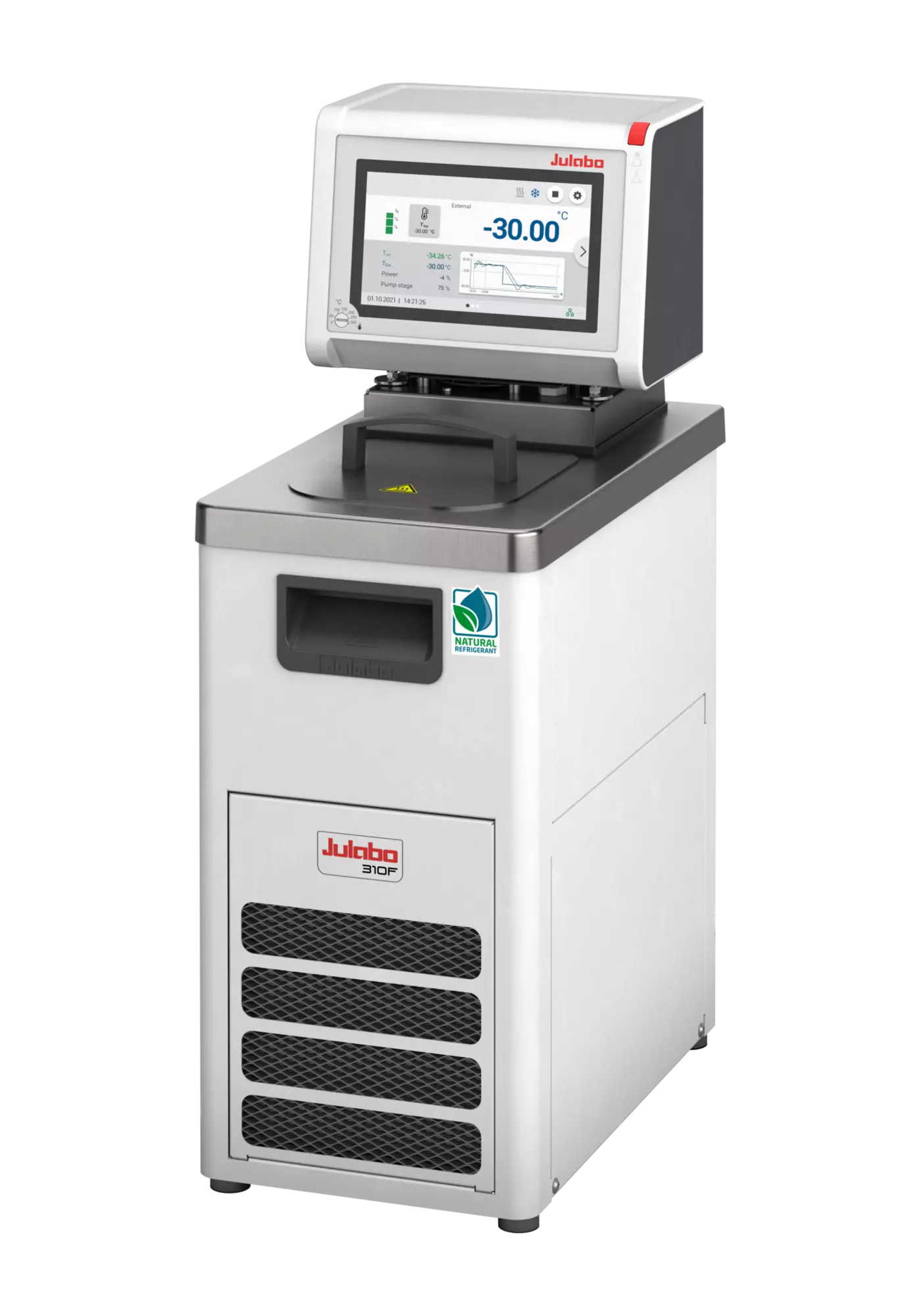

MAGIO MS-310F Refrigerated / Heating circulator

with extremely powerful pressure/suction pump and intuitive touch display

As with all circulators from the MAGIO range, the refrigerated circulators stand out thanks to their premium quality, high performance and intuitive operation. The devices offer extra strong pressure and suction pumps, thus fulfilling the highest demands for temperature control of external applications. Whether in basic research, material testing or technical systems – the MAGIO refrigerated circulators offer high-tech solutions for high customer requirements.

Request a quote

Alternatively with natural refrigerant

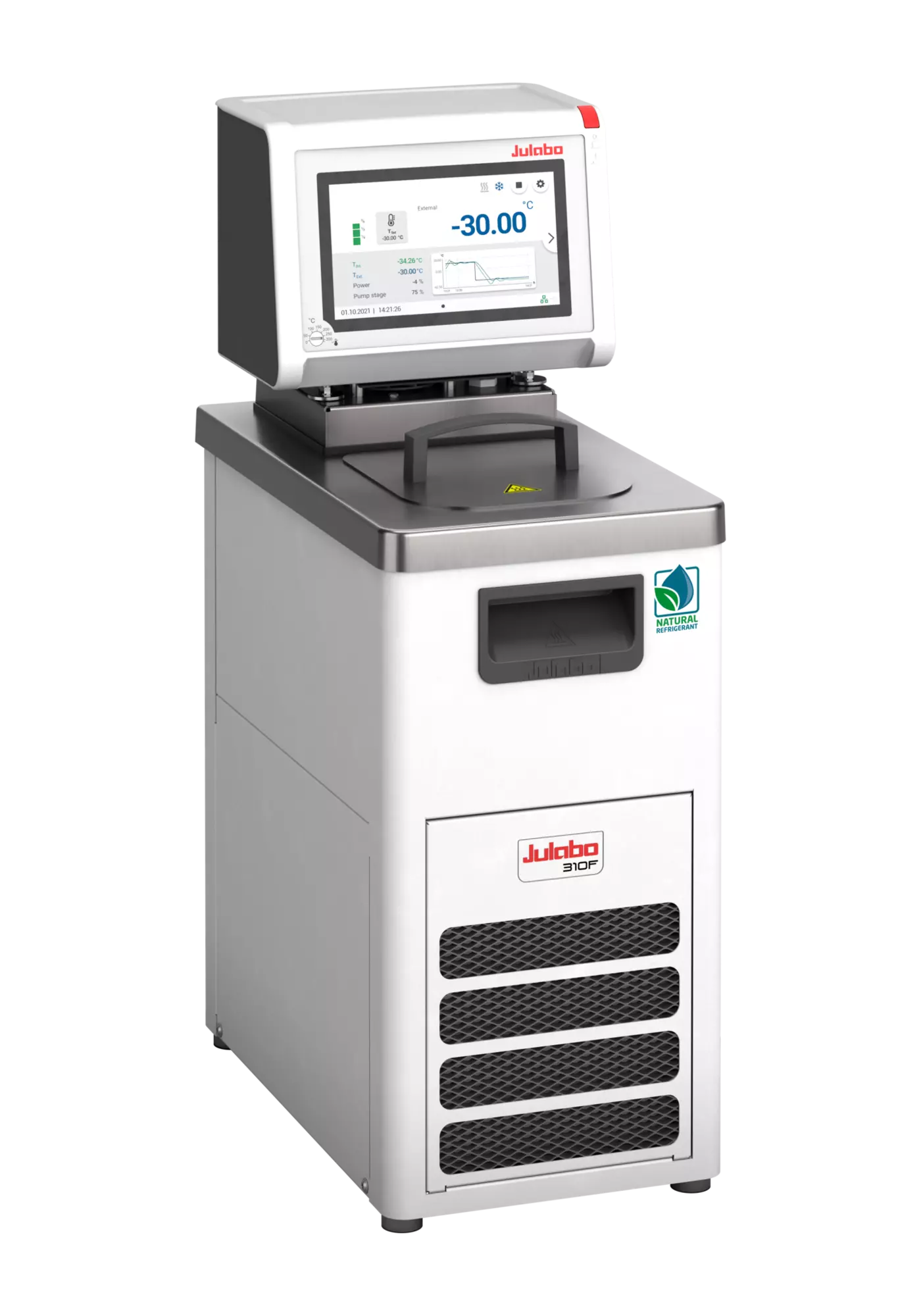

The MAGIO MS-310F is alternatively available with natural refrigerant. Order No.. 9 032 713.N1
Blatt wächst in einer Glühbirne
Data at mains voltage / frequency:
230V/50Hz (Schuko Plug - CEE 7/4 Plug Type F)
MS-310F
Order No. 9 032 713
Working temperature range -30.0 ... +200.0 °C
Temperature stability +/-0.01 °C
Heating capacity 0.8 kW
Cooling capacity 1
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.33 0.21 0.17 0.13 0.05
Cooling capacity 1
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.33 0.21 0.17 0.13 0.05
Cooling capacity 2
(Medium: Ethanol)
°C
kW
200 20 0 -10 -20 -30
0.26 0.26 0.21 0.17 0.1 0.01
Cooling capacity 2
(Medium: Ethanol)
°C 200 20 0 -10 -20 -30
kW 0.26 0.26 0.21 0.17 0.1 0.01
Pump capacity flow rate 16 ... 31 l/min
Pump capacity flow pressure 0.24 ... 0.92 bar
Usable bath opening
(W x L / D)
13 x 15 / 15 cm
Filling volume 3 ... 4 l
Dimensions
(W × L × H)
23 x 40 x 65 cm
Cooling capacity 1 = capacity at minimum pump level, cooling capacity 2 = capacity at maximum pump level
MS-310F
Order No. 9 032 713
Working temperature range -30.0 ... +200.0 °C
Temperature stability +/-0.01 °C
Heating capacity 0.8 kW
Cooling capacity 1
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.33 0.28 0.23 0.13 0.05
Cooling capacity 1
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.33 0.28 0.23 0.13 0.05
Cooling capacity 2
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.26 0.21 0.17 0.1 0.01
Cooling capacity 2
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.26 0.21 0.17 0.1 0.01
Pump capacity flow rate 16 ... 31 l/min
Pump capacity flow pressure 0.24 ... 0.92 bar
Usable bath opening
(W x L / D)
13 x 15 / 15 cm
Filling volume 3 ... 4 l
Dimensions
(W × L × H)
23 x 40 x 65 cm
Cooling capacity 1 = capacity at minimum pump level, cooling capacity 2 = capacity at maximum pump level
MS-310F
Order No. 9 032 713
Working temperature range -30.0 ... +200.0 °C
Temperature stability +/-0.01 °C
Heating capacity 1 kW
Cooling capacity 1
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.33 0.28 0.23 0.13 0.05
Cooling capacity 1
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.33 0.28 0.23 0.13 0.05
Cooling capacity 2
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.26 0.21 0.17 0.1 0.05
Cooling capacity 2
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.26 0.21 0.17 0.1 0.05
Pump capacity flow rate 16 ... 31 l/min
Pump capacity flow pressure 0.24 ... 0.92 bar
Usable bath opening
(W x L / D)
13 x 15 / 15 cm
Filling volume 3 ... 4 l
Dimensions
(W × L × H)
23 x 40 x 65 cm
Cooling capacity 1 = capacity at minimum pump level, cooling capacity 2 = capacity at maximum pump level
MS-310F
Order No. 9 032 713
Working temperature range -30.0 ... +200.0 °C
Temperature stability +/-0.01 °C
Heating capacity 2 kW
Cooling capacity 1
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.33 0.28 0.23 0.13 0.05
Cooling capacity 1
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.33 0.28 0.23 0.13 0.05
Cooling capacity 2
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.26 0.21 0.17 0.1 0.01
Cooling capacity 2
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.26 0.21 0.17 0.1 0.01
Pump capacity flow rate 16 ... 31 l/min
Pump capacity flow pressure 0.24 ... 0.92 bar
Usable bath opening
(W x L / D)
13 x 15 / 15 cm
Filling volume 3 ... 4 l
Dimensions
(W × L × H)
23 x 40 x 65 cm
Cooling capacity 1 = capacity at minimum pump level, cooling capacity 2 = capacity at maximum pump level
MS-310F
Order No. 9 032 713
Working temperature range -30.0 ... +200.0 °C
Temperature stability +/-0.01 °C
Heating capacity 2 kW
Cooling capacity 1
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.33 0.28 0.23 0.13 0.05
Cooling capacity 1
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.33 0.28 0.23 0.13 0.05
Cooling capacity 2
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.26 0.21 0.17 0.1 0.01
Cooling capacity 2
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.26 0.21 0.17 0.1 0.01
Pump capacity flow rate 16 ... 31 l/min
Pump capacity flow pressure 0.24 ... 0.92 bar
Usable bath opening
(W x L / D)
13 x 15 / 15 cm
Filling volume 3 ... 4 l
Dimensions
(W × L × H)
23 x 40 x 65 cm
Cooling capacity 1 = capacity at minimum pump level, cooling capacity 2 = capacity at maximum pump level
MS-310F
Order No. 9 032 713
Working temperature range -30.0 ... +200.0 °C
Temperature stability +/-0.01 °C
Heating capacity 2 kW
Cooling capacity 1
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.33 0.28 0.23 0.13 0.05
Cooling capacity 1
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.33 0.28 0.23 0.13 0.05
Cooling capacity 2
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.26 0.21 0.17 0.1 0.01
Cooling capacity 2
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.26 0.21 0.17 0.1 0.01
Pump capacity flow rate 16 ... 31 l/min
Pump capacity flow pressure 0.24 ... 0.92 bar
Usable bath opening
(W x L / D)
13 x 15 / 15 cm
Filling volume 3 ... 4 l
Dimensions
(W × L × H)
23 x 40 x 65 cm
Cooling capacity 1 = capacity at minimum pump level, cooling capacity 2 = capacity at maximum pump level
MS-310F
Order No. 9 032 713
Working temperature range -30.0 ... +200.0 °C
Temperature stability +/-0.01 °C
Heating capacity 2 kW
Cooling capacity 1
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.33 0.28 0.23 0.13 0.05
Cooling capacity 1
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.33 0.28 0.23 0.13 0.05
Cooling capacity 2
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.26 0.21 0.17 0.1 0.01
Cooling capacity 2
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.26 0.21 0.17 0.1 0.01
Pump capacity flow rate 16 ... 31 l/min
Pump capacity flow pressure 0.24 ... 0.92 bar
Usable bath opening
(W x L / D)
13 x 15 / 15 cm
Filling volume 3 ... 4 l
Dimensions
(W × L × H)
23 x 40 x 65 cm
Cooling capacity 1 = capacity at minimum pump level, cooling capacity 2 = capacity at maximum pump level
MS-310F
Order No. 9 032 713
Working temperature range -30.0 ... +200.0 °C
Temperature stability +/-0.01 °C
Heating capacity 2 kW
Cooling capacity 1
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.33 0.28 0.23 0.13 0.05
Cooling capacity 1
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.33 0.28 0.23 0.13 0.05
Cooling capacity 2
°C
kW
20 0 -10 -20 -30
0.26 0.21 0.17 0.1 0.01
Cooling capacity 2
°C 20 0 -10 -20 -30
kW 0.26 0.21 0.17 0.1 0.01
Pump capacity flow rate 16 ... 31 l/min
Pump capacity flow pressure 0.24 ... 0.92 bar
Usable bath opening
(W x L / D)
13 x 15 / 15 cm
Filling volume 3 ... 4 l
Dimensions
(W × L × H)
23 x 40 x 65 cm
Cooling capacity 1 = capacity at minimum pump level, cooling capacity 2 = capacity at maximum pump level
MS-310F
Order No. 9 032 713
Working temperature range -30.0 ... +200.0 °C
Temperature stability +/-0.01 °C
Heating capacity 2 kW
Cooling capacity 1
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.33 0.28 0.23 0.13 0.05
Cooling capacity 1
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.33 0.28 0.23 0.13 0.05
Cooling capacity 2
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.26 0.21 0.17 0.1 0.01
Cooling capacity 2
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.26 0.21 0.17 0.1 0.01
Pump capacity flow rate 16 ... 31 l/min
Pump capacity flow pressure 0.24 ... 0.92 bar
Usable bath opening
(W x L / D)
13 x 15 / 15 cm
Filling volume 3 ... 4 l
Dimensions
(W × L × H)
23 x 40 x 65 cm
Cooling capacity 1 = capacity at minimum pump level, cooling capacity 2 = capacity at maximum pump level
MS-310F
Order No. 9 032 713
Working temperature range -30.0 ... +200.0 °C
Temperature stability +/-0.01 °C
Heating capacity 2 kW
Cooling capacity 1
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.33 0.28 0.23 0.13 0.05
Cooling capacity 1
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.33 0.28 0.23 0.13 0.05
Cooling capacity 2
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.26 0.21 0.17 0.1 0.01
Cooling capacity 2
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.26 0.21 0.17 0.1 0.01
Pump capacity flow rate 16 ... 31 l/min
Pump capacity flow pressure 0.24 ... 0.92 bar
Usable bath opening
(W x L / D)
13 x 15 / 15 cm
Filling volume 3 ... 4 l
Dimensions
(W × L × H)
23 x 40 x 65 cm
Cooling capacity 1 = capacity at minimum pump level, cooling capacity 2 = capacity at maximum pump level
MS-310F
Order No. 9 032 713
Working temperature range -30.0 ... +200.0 °C
Temperature stability +/-0.01 °C
Heating capacity 2 kW
Cooling capacity 1
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.33 0.28 0.23 0.13 0.05
Cooling capacity 1
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.33 0.28 0.23 0.13 0.05
Cooling capacity 2
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.26 0.21 0.17 0.1 0.01
Cooling capacity 2
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.26 0.21 0.17 0.1 0.01
Pump capacity flow rate 16 ... 31 l/min
Pump capacity flow pressure 0.24 ... 0.92 bar
Usable bath opening
(W x L / D)
13 x 15 / 15 cm
Filling volume 3 ... 4 l
Dimensions
(W × L × H)
23 x 40 x 65 cm
Cooling capacity 1 = capacity at minimum pump level, cooling capacity 2 = capacity at maximum pump level
MS-310F
Order No. 9 032 713
Working temperature range -30.0 ... +200.0 °C
Temperature stability +/-0.01 °C
Heating capacity 2 kW
Cooling capacity 1
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.33 0.28 0.23 0.13 0.05
Cooling capacity 1
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.33 0.28 0.23 0.13 0.05
Cooling capacity 2
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.26 0.21 0.17 0.1 0.01
Cooling capacity 2
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.26 0.21 0.17 0.1 0.01
Pump capacity flow rate 16 ... 31 l/min
Pump capacity flow pressure 0.24 ... 0.92 bar
Usable bath opening
(W x L / D)
13 x 15 / 15 cm
Filling volume 3 ... 4 l
Dimensions
(W × L × H)
23 x 40 x 65 cm
Cooling capacity 1 = capacity at minimum pump level, cooling capacity 2 = capacity at maximum pump level
MS-310F
Order No. 9 032 713
Working temperature range -30.0 ... +200.0 °C
Temperature stability +/-0.01 °C
Heating capacity 2 kW
Cooling capacity 1
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.33 0.28 0.23 0.13 0.05
Cooling capacity 1
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.33 0.28 0.23 0.13 0.05
Cooling capacity 2
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.26 0.21 0.17 0.1 0.01
Cooling capacity 2
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.26 0.21 0.17 0.1 0.01
Pump capacity flow rate 16 ... 31 l/min
Pump capacity flow pressure 0.24 ... 0.92 bar
Usable bath opening
(W x L / D)
13 x 15 / 15 cm
Filling volume 3 ... 4 l
Dimensions
(W × L × H)
23 x 40 x 65 cm
Cooling capacity 1 = capacity at minimum pump level, cooling capacity 2 = capacity at maximum pump level
MS-310F
Order No. 9 032 713
Working temperature range -30.0 ... +200.0 °C
Temperature stability +/-0.01 °C
Heating capacity 2 kW
Cooling capacity 1
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.33 0.28 0.23 0.13 0.05
Cooling capacity 1
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.33 0.28 0.23 0.13 0.05
Cooling capacity 2
°C
kW
20 0 -10 -20 -30
0.26 0.21 0.17 0.1 0.01
Cooling capacity 2
°C 20 0 -10 -20 -30
kW 0.26 0.21 0.17 0.1 0.01
Pump capacity flow rate 16 ... 31 l/min
Pump capacity flow pressure 0.24 ... 0.92 bar
Usable bath opening
(W x L / D)
13 x 15 / 15 cm
Filling volume 3 ... 4 l
Dimensions
(W × L × H)
23 x 40 x 65 cm
Cooling capacity 1 = capacity at minimum pump level, cooling capacity 2 = capacity at maximum pump level
MS-310F
Order No. 9 032 713
Working temperature range -30.0 ... +200.0 °C
Temperature stability +/-0.01 °C
Heating capacity 2 kW
Cooling capacity 1
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.33 0.28 0.23 0.13 0.05
Cooling capacity 1
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.33 0.28 0.23 0.13 0.05
Cooling capacity 2
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.26 0.21 0.17 0.1 0.01
Cooling capacity 2
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.26 0.21 0.17 0.1 0.01
Pump capacity flow rate 16 ... 31 l/min
Pump capacity flow pressure 0.24 ... 0.92 bar
Usable bath opening
(W x L / D)
13 x 15 / 15 cm
Filling volume 3 ... 4 l
Dimensions
(W × L × H)
23 x 40 x 65 cm
Cooling capacity 1 = capacity at minimum pump level, cooling capacity 2 = capacity at maximum pump level
MS-310F
Order No. 9 032 713
Working temperature range -30.0 ... +200.0 °C
Temperature stability +/-0.01 °C
Heating capacity 2 kW
Cooling capacity 1
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.33 0.28 0.23 0.13 0.05
Cooling capacity 1
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.33 0.28 0.23 0.13 0.05
Cooling capacity 2
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.26 0.21 0.17 0.1 0.01
Cooling capacity 2
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.26 0.21 0.17 0.1 0.01
Pump capacity flow rate 16 ... 31 l/min
Pump capacity flow pressure 0.24 ... 0.92 bar
Usable bath opening
(W x L / D)
13 x 15 / 15 cm
Filling volume 3 ... 4 l
Dimensions
(W × L × H)
23 x 40 x 65 cm
Cooling capacity 1 = capacity at minimum pump level, cooling capacity 2 = capacity at maximum pump level
MS-310F
Order No. 9 032 713
Working temperature range -30.0 ... +200.0 °C
Temperature stability +/-0.01 °C
Heating capacity 2 kW
Cooling capacity 1
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.33 0.28 0.23 0.13 0.05
Cooling capacity 1
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.33 0.28 0.23 0.13 0.05
Cooling capacity 2
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.26 0.21 0.17 0.1 0.01
Cooling capacity 2
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.26 0.21 0.17 0.1 0.01
Pump capacity flow rate 16 ... 31 l/min
Pump capacity flow pressure 0.24 ... 0.92 bar
Usable bath opening
(W x L / D)
13 x 15 / 15 cm
Filling volume 3 ... 4 l
Dimensions
(W × L × H)
23 x 40 x 65 cm
Cooling capacity 1 = capacity at minimum pump level, cooling capacity 2 = capacity at maximum pump level
MS-310F
Order No. 9 032 713
Working temperature range -30.0 ... +200.0 °C
Temperature stability +/-0.01 °C
Heating capacity 2 kW
Cooling capacity 1
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.33 0.28 0.23 0.13 0.05
Cooling capacity 1
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.33 0.28 0.23 0.13 0.05
Cooling capacity 2
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.26 0.21 0.17 0.1 0.01
Cooling capacity 2
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.26 0.21 0.17 0.1 0.01
Pump capacity flow rate 16 ... 31 l/min
Pump capacity flow pressure 0.24 ... 0.92 bar
Usable bath opening
(W x L / D)
13 x 15 / 15 cm
Filling volume 3 ... 4 l
Dimensions
(W × L × H)
23 x 40 x 65 cm
Cooling capacity 1 = capacity at minimum pump level, cooling capacity 2 = capacity at maximum pump level
MS-310F
Order No. 9 032 713
Working temperature range -30.0 ... +200.0 °C
Temperature stability +/-0.01 °C
Heating capacity 2 kW
Cooling capacity 1
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.33 0.28 0.23 0.13 0.05
Cooling capacity 1
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.33 0.28 0.23 0.13 0.05
Cooling capacity 2
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.26 0.21 0.17 0.1 0.01
Cooling capacity 2
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.26 0.21 0.17 0.1 0.01
Pump capacity flow rate 16 ... 31 l/min
Pump capacity flow pressure 0.24 ... 0.92 bar
Usable bath opening
(W x L / D)
13 x 15 / 15 cm
Filling volume 3 ... 4 l
Dimensions
(W × L × H)
23 x 40 x 65 cm
Cooling capacity 1 = capacity at minimum pump level, cooling capacity 2 = capacity at maximum pump level

Product Features

  • Ideal for demanding external applications
  • Simple control of complex applications
  • Continuously adjustable, extremely powerful pressure / suction pump
  • Flow rate 16 ... 31 l / min, pressure 0.24 ... 0.92 bar, suction 0.03 ... 0.4 bar
  • Large, high-resolution TFT touch display with multilingual user interface
  • Parts being in contact with the medium made of stainless steel
  • Integrated programmer
  • Integrated external Pt100 connection
  • USB connection
  • RS232 interface for online communication
  • Ethernet
  • analog interfaces (accessory)
  • Class III (FL) according to DIN 12876-1
  • Modbus
  • Profibus DP (Accessory)
  • RS232/RS485 interface for online communication
  • Connections for solenoid valve
Dimensions and volumes
Dimensions
(W × L × H)
23 x 40 x 65 cm
Filling volume 3 ... 4 l
Weight 29 kg
Pump connections M16x1 male
Temperature values
Working temperature range -30.0 ... +200.0 °C
Temperature stability +/-0.01 °C
Setting the resolution of the temperature display 0.01 °C
Temperature display resolution 0.01 °C
Ambient temperature +10.0 ... +40.0 °C
Data at mains voltage / frequency:
230V/50Hz (Schuko Plug - CEE 7/4 Plug Type F)
Performance values
Heating capacity 0.8 kW
Cooling capacity 1
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.33 0.21 0.17 0.13 0.05
Cooling capacity 1
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.33 0.21 0.17 0.13 0.05
Cooling capacity 2
(Medium: Ethanol)
°C
kW
200 20 0 -10 -20 -30
0.26 0.26 0.21 0.17 0.1 0.01
Cooling capacity 2
(Medium: Ethanol)
°C 200 20 0 -10 -20 -30
kW 0.26 0.26 0.21 0.17 0.1 0.01
Pump capacity flow rate 16 ... 31 l/min
Pump capacity flow pressure 0.24 ... 0.92 bar
Maximum suction -0.03 ... -0.4 bar
Viscosity max. 70 cST
Refrigerant stage 1
Refrigerant R449A
Global Warming Potential for R449A 1397
Filling volume 60 g
Carbon dioxide equivalent 0.084 t
Power 12 A
Performance values
Heating capacity 0.8 kW
Cooling capacity 1
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.33 0.28 0.23 0.13 0.05
Cooling capacity 1
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.33 0.28 0.23 0.13 0.05
Cooling capacity 2
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.26 0.21 0.17 0.1 0.01
Cooling capacity 2
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.26 0.21 0.17 0.1 0.01
Pump capacity flow rate 16 ... 31 l/min
Pump capacity flow pressure 0.24 ... 0.92 bar
Maximum suction -0.03 ... -0.4 bar
Viscosity max. 70 cST
Refrigerant stage 1
Refrigerant R449A
Global Warming Potential for R449A 1397
Filling volume 60 g
Carbon dioxide equivalent 0.084 t
Power 12 A
Performance values
Heating capacity 1 kW
Cooling capacity 1
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.33 0.28 0.23 0.13 0.05
Cooling capacity 1
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.33 0.28 0.23 0.13 0.05
Cooling capacity 2
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.26 0.21 0.17 0.1 0.05
Cooling capacity 2
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.26 0.21 0.17 0.1 0.05
Pump capacity flow rate 16 ... 31 l/min
Pump capacity flow pressure 0.24 ... 0.92 bar
Maximum suction -0.03 ... -0.4 bar
Viscosity max. 70 cST
Refrigerant stage 1
Refrigerant R449A
Global Warming Potential for R449A 1397
Filling volume 60 g
Carbon dioxide equivalent 0.084 t
Power 12 A
Performance values
Heating capacity 2 kW
Cooling capacity 1
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.33 0.28 0.23 0.13 0.05
Cooling capacity 1
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.33 0.28 0.23 0.13 0.05
Cooling capacity 2
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.26 0.21 0.17 0.1 0.01
Cooling capacity 2
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.26 0.21 0.17 0.1 0.01
Pump capacity flow rate 16 ... 31 l/min
Pump capacity flow pressure 0.24 ... 0.92 bar
Maximum suction -0.03 ... -0.4 bar
Viscosity max. 70 cST
Refrigerant stage 1
Refrigerant R449A
Global Warming Potential for R449A 1397
Filling volume 60 g
Carbon dioxide equivalent 0.084 t
Power 13 A
Performance values
Heating capacity 2 kW
Cooling capacity 1
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.33 0.28 0.23 0.13 0.05
Cooling capacity 1
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.33 0.28 0.23 0.13 0.05
Cooling capacity 2
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.26 0.21 0.17 0.1 0.01
Cooling capacity 2
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.26 0.21 0.17 0.1 0.01
Pump capacity flow rate 16 ... 31 l/min
Pump capacity flow pressure 0.24 ... 0.92 bar
Maximum suction -0.03 ... -0.4 bar
Viscosity max. 70 cST
Refrigerant stage 1
Refrigerant R449A
Global Warming Potential for R449A 1397
Filling volume 60 g
Carbon dioxide equivalent 0.084 t
Power 13 A
Performance values
Heating capacity 2 kW
Cooling capacity 1
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.33 0.28 0.23 0.13 0.05
Cooling capacity 1
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.33 0.28 0.23 0.13 0.05
Cooling capacity 2
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.26 0.21 0.17 0.1 0.01
Cooling capacity 2
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.26 0.21 0.17 0.1 0.01
Pump capacity flow rate 16 ... 31 l/min
Pump capacity flow pressure 0.24 ... 0.92 bar
Maximum suction -0.03 ... -0.4 bar
Viscosity max. 70 cST
Refrigerant stage 1
Refrigerant R449A
Global Warming Potential for R449A 1397
Filling volume 60 g
Carbon dioxide equivalent 0.084 t
Power 13 A
Performance values
Heating capacity 2 kW
Cooling capacity 1
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.33 0.28 0.23 0.13 0.05
Cooling capacity 1
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.33 0.28 0.23 0.13 0.05
Cooling capacity 2
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.26 0.21 0.17 0.1 0.01
Cooling capacity 2
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.26 0.21 0.17 0.1 0.01
Pump capacity flow rate 16 ... 31 l/min
Pump capacity flow pressure 0.24 ... 0.92 bar
Maximum suction -0.03 ... -0.4 bar
Viscosity max. 70 cST
Refrigerant stage 1
Refrigerant R449A
Global Warming Potential for R449A 1397
Filling volume 60 g
Carbon dioxide equivalent 0.084 t
Power 13 A
Performance values
Heating capacity 2 kW
Cooling capacity 1
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.33 0.28 0.23 0.13 0.05
Cooling capacity 1
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.33 0.28 0.23 0.13 0.05
Cooling capacity 2
°C
kW
20 0 -10 -20 -30
0.26 0.21 0.17 0.1 0.01
Cooling capacity 2
°C 20 0 -10 -20 -30
kW 0.26 0.21 0.17 0.1 0.01
Pump capacity flow rate 16 ... 31 l/min
Pump capacity flow pressure 0.24 ... 0.92 bar
Maximum suction -0.03 ... -0.4 bar
Viscosity max. 70 cST
Refrigerant stage 1
Refrigerant R449A
Global Warming Potential for R449A 1397
Filling volume 60 g
Carbon dioxide equivalent 0.084 t
Power 13 A
Performance values
Heating capacity 2 kW
Cooling capacity 1
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.33 0.28 0.23 0.13 0.05
Cooling capacity 1
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.33 0.28 0.23 0.13 0.05
Cooling capacity 2
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.26 0.21 0.17 0.1 0.01
Cooling capacity 2
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.26 0.21 0.17 0.1 0.01
Pump capacity flow rate 16 ... 31 l/min
Pump capacity flow pressure 0.24 ... 0.92 bar
Maximum suction -0.03 ... -0.4 bar
Viscosity max. 70 cST
Refrigerant stage 1
Refrigerant R449A
Global Warming Potential for R449A 1397
Filling volume 60 g
Carbon dioxide equivalent 0.084 t
Power 13 A
Performance values
Heating capacity 2 kW
Cooling capacity 1
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.33 0.28 0.23 0.13 0.05
Cooling capacity 1
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.33 0.28 0.23 0.13 0.05
Cooling capacity 2
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.26 0.21 0.17 0.1 0.01
Cooling capacity 2
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.26 0.21 0.17 0.1 0.01
Pump capacity flow rate 16 ... 31 l/min
Pump capacity flow pressure 0.24 ... 0.92 bar
Maximum suction -0.03 ... -0.4 bar
Viscosity max. 70 cST
Refrigerant stage 1
Refrigerant R449A
Global Warming Potential for R449A 1397
Filling volume 60 g
Carbon dioxide equivalent 0.084 t
Power 13 A
Performance values
Heating capacity 2 kW
Cooling capacity 1
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.33 0.28 0.23 0.13 0.05
Cooling capacity 1
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.33 0.28 0.23 0.13 0.05
Cooling capacity 2
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.26 0.21 0.17 0.1 0.01
Cooling capacity 2
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.26 0.21 0.17 0.1 0.01
Pump capacity flow rate 16 ... 31 l/min
Pump capacity flow pressure 0.24 ... 0.92 bar
Maximum suction -0.03 ... -0.4 bar
Viscosity max. 70 cST
Refrigerant stage 1
Refrigerant R449A
Global Warming Potential for R449A 1397
Filling volume 60 g
Carbon dioxide equivalent 0.084 t
Power 13 A
Performance values
Heating capacity 2 kW
Cooling capacity 1
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.33 0.28 0.23 0.13 0.05
Cooling capacity 1
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.33 0.28 0.23 0.13 0.05
Cooling capacity 2
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.26 0.21 0.17 0.1 0.01
Cooling capacity 2
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.26 0.21 0.17 0.1 0.01
Pump capacity flow rate 16 ... 31 l/min
Pump capacity flow pressure 0.24 ... 0.92 bar
Maximum suction -0.03 ... -0.4 bar
Viscosity max. 70 cST
Refrigerant stage 1
Refrigerant R449A
Global Warming Potential for R449A 1397
Filling volume 60 g
Carbon dioxide equivalent 0.084 t
Power 13 A
Performance values
Heating capacity 2 kW
Cooling capacity 1
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.33 0.28 0.23 0.13 0.05
Cooling capacity 1
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.33 0.28 0.23 0.13 0.05
Cooling capacity 2
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.26 0.21 0.17 0.1 0.01
Cooling capacity 2
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.26 0.21 0.17 0.1 0.01
Pump capacity flow rate 16 ... 31 l/min
Pump capacity flow pressure 0.24 ... 0.92 bar
Maximum suction -0.03 ... 0.04 bar
Viscosity max. 70 cST
Refrigerant stage 1
Refrigerant R449A
Global Warming Potential for R449A 1397
Filling volume 60 g
Carbon dioxide equivalent 0.084 t
Power 13 A
Performance values
Heating capacity 2 kW
Cooling capacity 1
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.33 0.28 0.23 0.13 0.05
Cooling capacity 1
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.33 0.28 0.23 0.13 0.05
Cooling capacity 2
°C
kW
20 0 -10 -20 -30
0.26 0.21 0.17 0.1 0.01
Cooling capacity 2
°C 20 0 -10 -20 -30
kW 0.26 0.21 0.17 0.1 0.01
Pump capacity flow rate 16 ... 31 l/min
Pump capacity flow pressure 0.24 ... 0.92 bar
Maximum suction -0.03 ... -0.4 bar
Viscosity max. 70 cST
Refrigerant stage 1
Refrigerant R449A
Global Warming Potential for R449A 1397
Filling volume 60 g
Carbon dioxide equivalent 0.084 t
Power 13 A
Performance values
Heating capacity 2 kW
Cooling capacity 1
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.33 0.28 0.23 0.13 0.05
Cooling capacity 1
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.33 0.28 0.23 0.13 0.05
Cooling capacity 2
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.26 0.21 0.17 0.1 0.01
Cooling capacity 2
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.26 0.21 0.17 0.1 0.01
Pump capacity flow rate 16 ... 31 l/min
Pump capacity flow pressure 0.24 ... 0.92 bar
Maximum suction -0.03 ... -0.4 bar
Viscosity max. 70 cST
Refrigerant stage 1
Refrigerant R449A
Global Warming Potential for R449A 1397
Filling volume 60 g
Carbon dioxide equivalent 0.084 t
Power 13 A
Performance values
Heating capacity 2 kW
Cooling capacity 1
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.33 0.28 0.23 0.13 0.05
Cooling capacity 1
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.33 0.28 0.23 0.13 0.05
Cooling capacity 2
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.26 0.21 0.17 0.1 0.01
Cooling capacity 2
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.26 0.21 0.17 0.1 0.01
Pump capacity flow rate 16 ... 31 l/min
Pump capacity flow pressure 0.24 ... 0.92 bar
Maximum suction -0.03 ... -0.4 bar
Viscosity max. 70 cST
Refrigerant stage 1
Refrigerant R449A
Global Warming Potential for R449A 1397
Filling volume 60 g
Carbon dioxide equivalent 0.084 t
Power 10 A
Performance values
Heating capacity 2 kW
Cooling capacity 1
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.33 0.28 0.23 0.13 0.05
Cooling capacity 1
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.33 0.28 0.23 0.13 0.05
Cooling capacity 2
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.26 0.21 0.17 0.1 0.01
Cooling capacity 2
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.26 0.21 0.17 0.1 0.01
Pump capacity flow rate 16 ... 31 l/min
Pump capacity flow pressure 0.24 ... 0.92 bar
Maximum suction -0.03 ... -0.4 bar
Viscosity max. 70 cST
Refrigerant stage 1
Refrigerant R449A
Global Warming Potential for R449A 1397
Filling volume 60 g
Carbon dioxide equivalent 0.084 t
Power 10 A
Performance values
Heating capacity 2 kW
Cooling capacity 1
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.33 0.28 0.23 0.13 0.05
Cooling capacity 1
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.33 0.28 0.23 0.13 0.05
Cooling capacity 2
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.26 0.21 0.17 0.1 0.01
Cooling capacity 2
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.26 0.21 0.17 0.1 0.01
Pump capacity flow rate 16 ... 31 l/min
Pump capacity flow pressure 0.24 ... 0.92 bar
Maximum suction -0.03 ... -0.4 bar
Viscosity max. 70 cST
Refrigerant stage 1
Refrigerant R449A
Global Warming Potential for R449A 1397
Filling volume 60 g
Carbon dioxide equivalent 0.084 t
Power 10 A
Performance values
Heating capacity 2 kW
Cooling capacity 1
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.33 0.28 0.23 0.13 0.05
Cooling capacity 1
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.33 0.28 0.23 0.13 0.05
Cooling capacity 2
(Medium: Ethanol)
°C
kW
20 0 -10 -20 -30
0.26 0.21 0.17 0.1 0.01
Cooling capacity 2
(Medium: Ethanol)
°C 20 0 -10 -20 -30
kW 0.26 0.21 0.17 0.1 0.01
Pump capacity flow rate 16 ... 31 l/min
Pump capacity flow pressure 0.24 ... 0.92 bar
Maximum suction -0.03 ... -0.4 bar
Viscosity max. 70 cST
Refrigerant stage 1
Refrigerant R449A
Global Warming Potential for R449A 1397
Filling volume 60 g
Carbon dioxide equivalent 0.084 t
Power 10 A
Bath
Bath tank Stainless steel
Bath cover integrated
Usable bath opening
(W x L / D)
13 x 15 / 15 cm
Cooling
Cooling of compressor 1-stage Air
Other
Classification
according to DIN12876-1
Classification III (FL)
IP Code
according to IEC 60529
IP 21
Pump function Pressure Suction Pump
Pump type Immersion Pump
Cooling capacity 1 = capacity at minimum pump level, cooling capacity 2 = capacity at maximum pump level
Electronics
External pt100 sensor connection integrated
Integrated programmer 8x60 steps
Temperature control ICC
Absolute temperature calibration 3 Point Calibration
Temperature display 7" TFT Touchscreen
Temperature setting Touchscreen
Electronic Timer
hr:min
00:00 ... 99:59
Available voltage versions
100V/50-60Hz Nema N5-15 Plug 9032713.01
115V/60Hz Nema N5-15 Plug 9032713.02
200-230V/50-60Hz Schuko Plug - CEE 7/4 Plug Type F 9032713.33
200-230V/50-60Hz CN Plug 9032713.33.chn
200-230V/50-60Hz UK Plug Type BS1363A 9032713.04
200-230V/50-60Hz CH Plug Type SEV 1011 9032713.05
Included in delivery
2 Barbed fittings for tubing 8 and 12 mm ID. (Pump connections M16x1 male)
Cooling capacity 1 = capacity at minimum pump level, cooling capacity 2 = capacity at maximum pump level

Cool-down time

Heat-up time

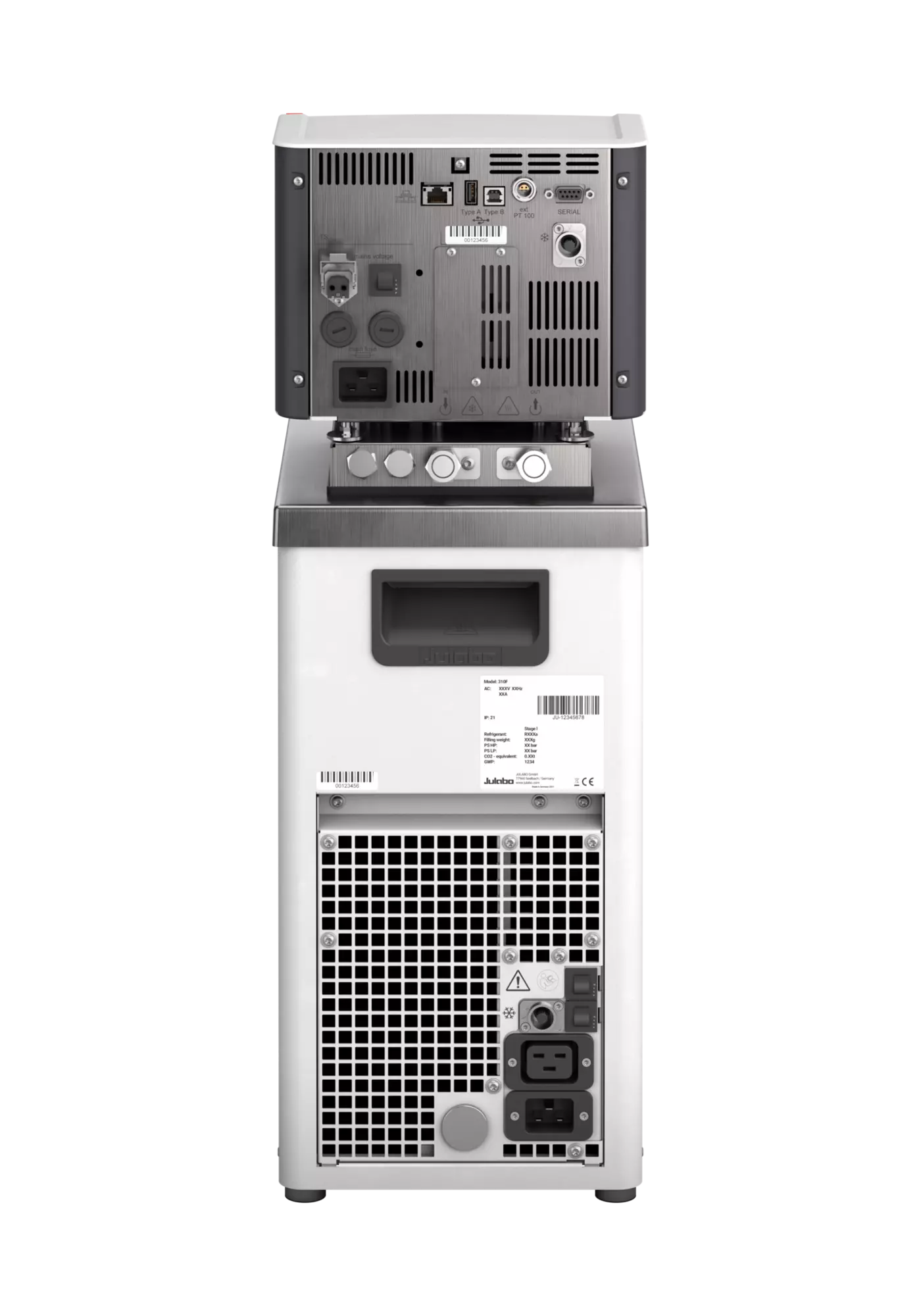

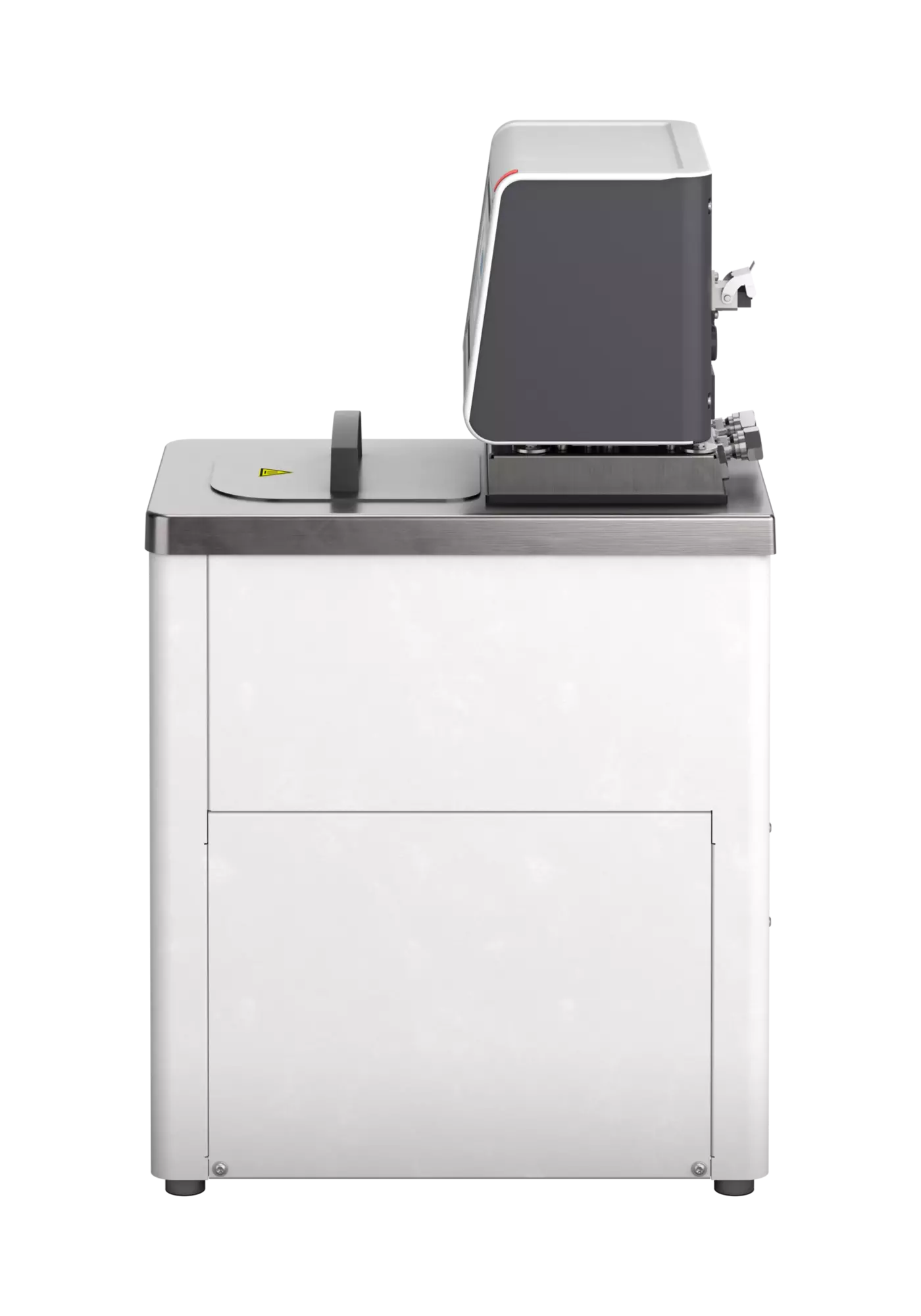

Accessory for MAGIO MS-310F

We would also be happy to send you our printed catalogs and brochures by post.


Request brochure

Benefits

  • 100% geprüft
    100% Checked.
    100% testing. 100% quality. Each JULABO Circulator undergoes thorough quality testing before leaving the factory.
  • Blatt wächst in einer Glühbirne
    Green technology.
    Development consistently applied environmentally friendly materials and technologies.
  • condensation-protection_CORIO
    Condensation protection.
    Superb design solution. Integrated ventilation directs air over the bath lid and minimizes condensation.
  • easy-to-handle
    Handle with ease.
    Makes day-to-day work easy. Comfortably move your JULABO Circulator around by using the ergonomic handles (front and rear).
