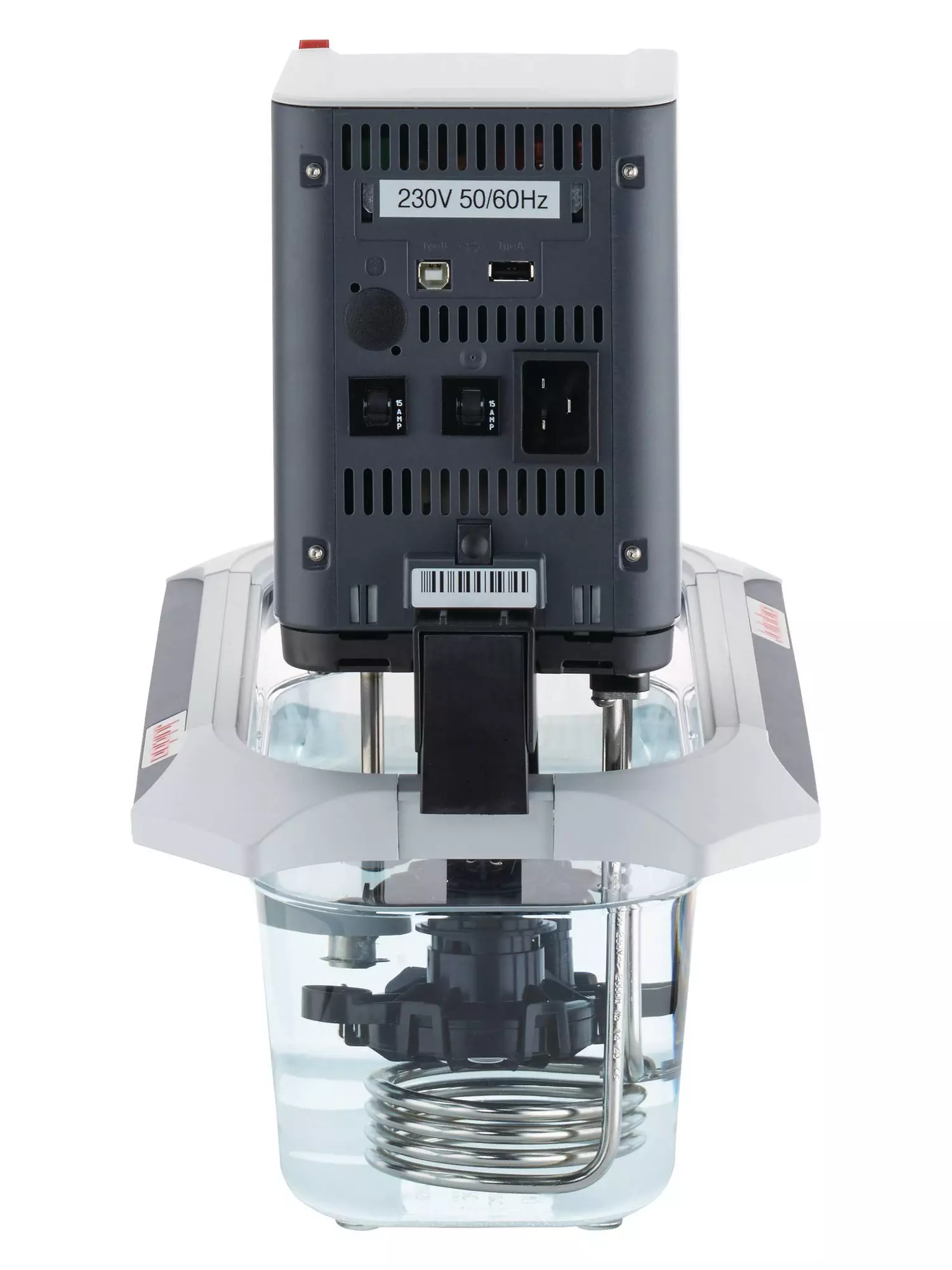

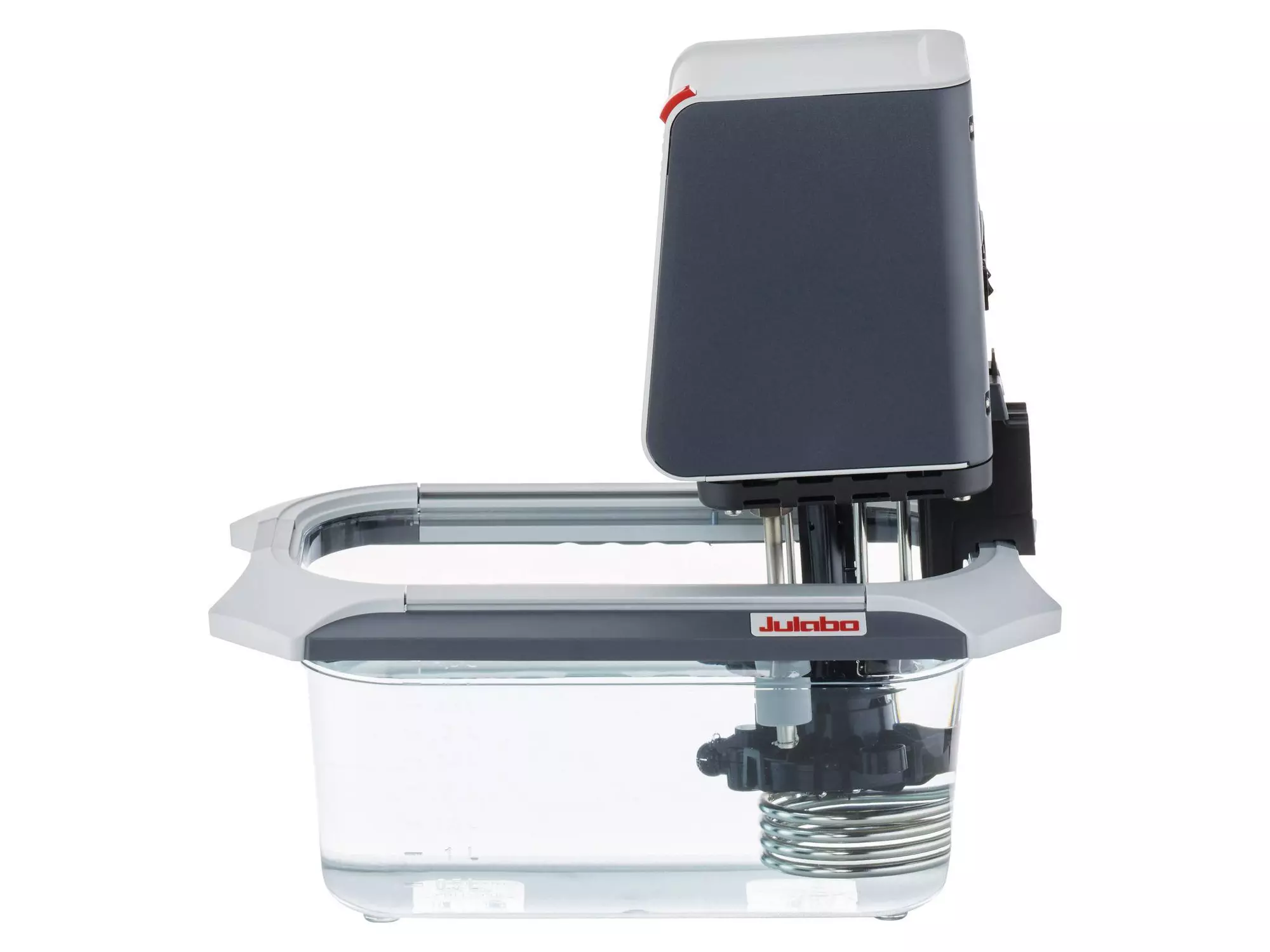

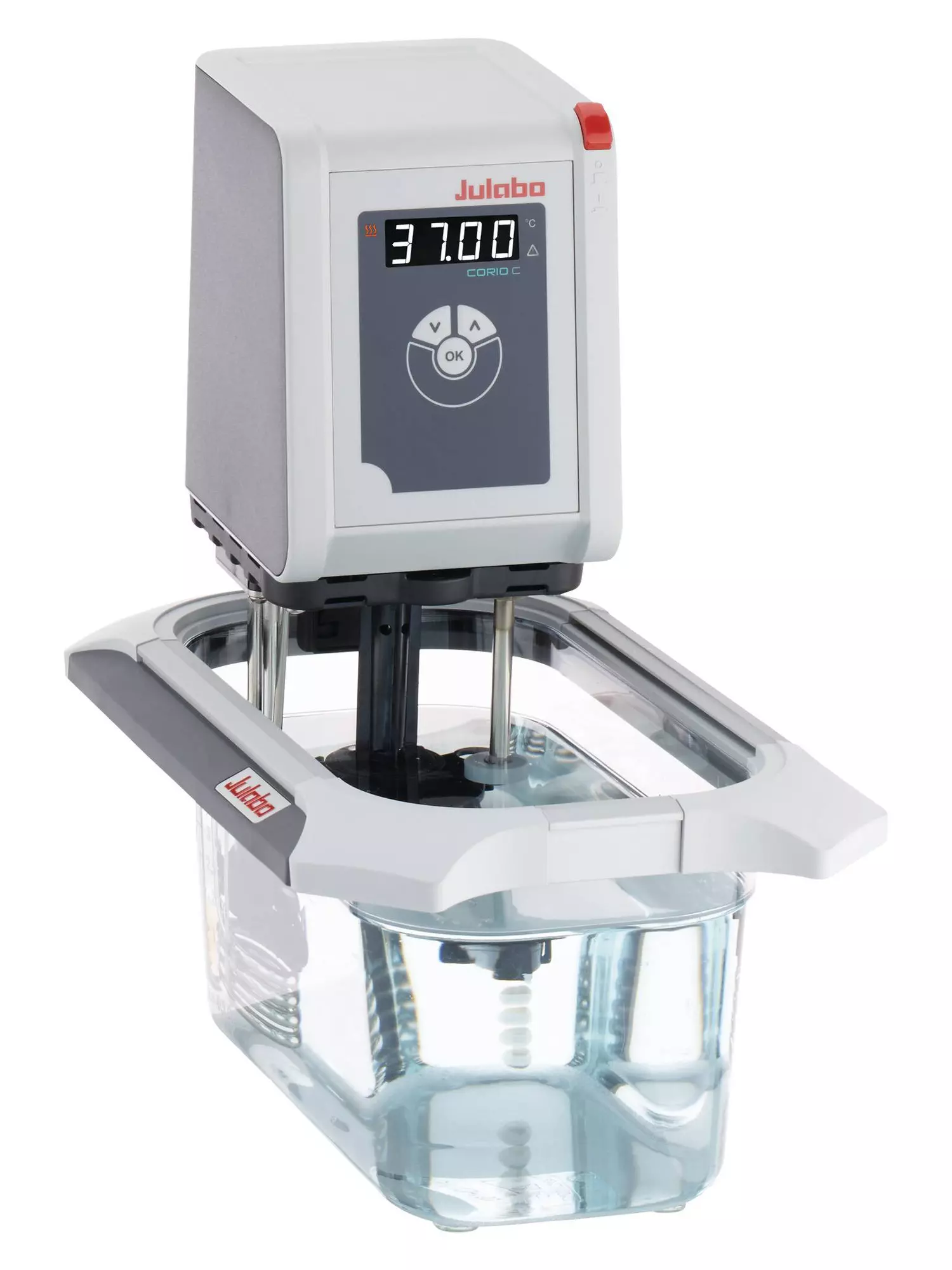

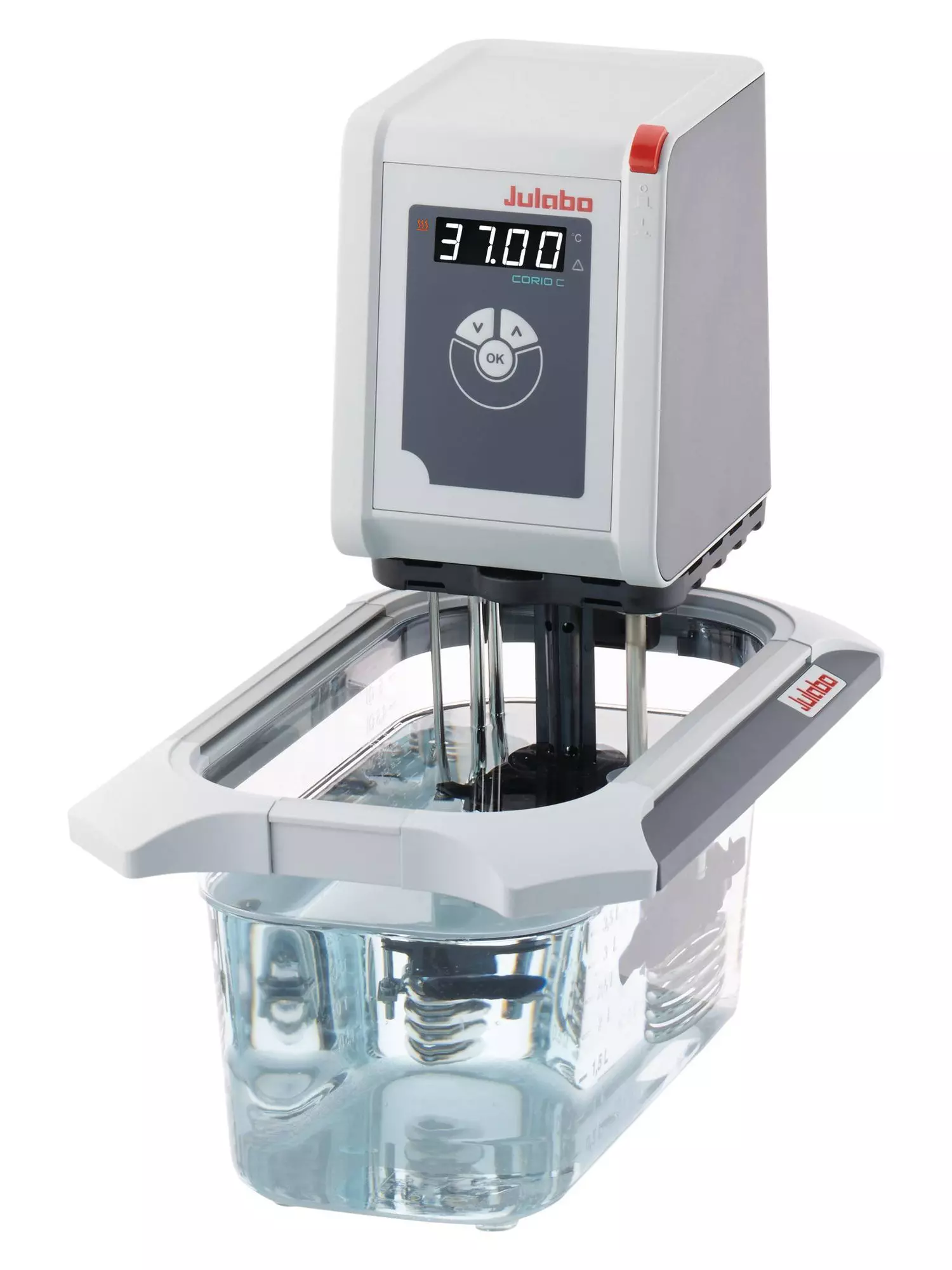

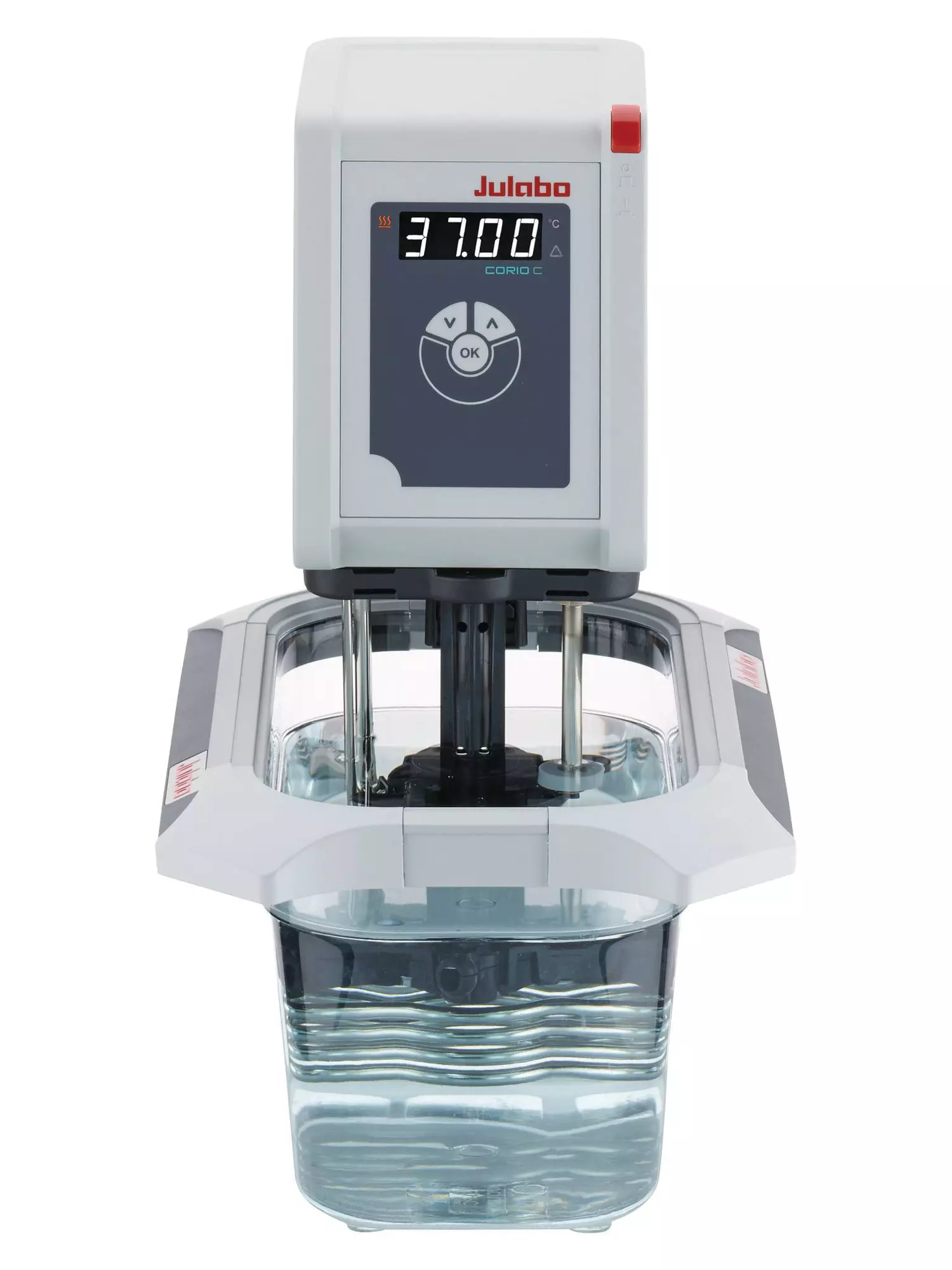

CORIO C-BT5

Laboratory circulators for internal temperature application at working temperatures from +20 to +100°C

The Open Heating Bath Circulators of the new CORIO series feature high-quality transparent bath tanks.

Request a quote
Data at mains voltage / frequency:
230V/60Hz (Schuko Plug - CEE 7/4 Plug Type F)
C-BT5
Order No. 9 011 305.22
Working temperature range +20 ... +100 °C
Temperature stability ±0.03 °C
Heating capacity 0.8 kW
Usable bath opening
(W x L / D)
5.9 x 5.9 / 5.9 in.
Filling volume 3.5 ... 5 l
Dimensions
(W × L × H)
9.1 x 15 x 15 in.
C-BT5
Order No. 9 011 305.22
Working temperature range +20 ... +100 °C
Temperature stability ±0.03 °C
Heating capacity 0.8 kW
Usable bath opening
(W x L / D)
5.9 x 5.9 / 5.9 in.
Filling volume 3.5 ... 5 l
Dimensions
(W × L × H)
9.1 x 15 x 15 in.
C-BT5
Order No. 9 011 305.22
Working temperature range +20 ... +100 °C
Temperature stability ±0.03 °C
Heating capacity 1 kW
Usable bath opening
(W x L / D)
5.9 x 5.9 / 5.9 in.
Filling volume 3.5 ... 5 l
Dimensions
(W × L × H)
9.1 x 15 x 15 in.
C-BT5
Order No. 9 011 305.22
Working temperature range +20 ... +100 °C
Temperature stability ±0.03 °C
Heating capacity 1 kW
Usable bath opening
(W x L / D)
5.9 x 5.9 / 5.9 in.
Filling volume 3.5 ... 5 l
Dimensions
(W × L × H)
9.1 x 15 x 15 in.
C-BT5
Order No. 9 011 305.33.chn
Working temperature range +20 ... +100 °C
Temperature stability ±0.03 °C
Heating capacity 2 kW
Usable bath opening
(W x L / D)
5.9 x 5.9 / 5.9 in.
Filling volume 3.5 ... 5 l
Dimensions
(W × L × H)
9.1 x 15 x 15 in.
C-BT5
Order No. 9 011 305.33.chn
Working temperature range +20 ... +100 °C
Temperature stability ±0.03 °C
Heating capacity 2 kW
Usable bath opening
(W x L / D)
5.9 x 5.9 / 5.9 in.
Filling volume 3.5 ... 5 l
Dimensions
(W × L × H)
9.1 x 15 x 15 in.
C-BT5
Order No. 9 011 305.33
Working temperature range +20 ... +100 °C
Temperature stability ±0.03 °C
Heating capacity 2 kW
Usable bath opening
(W x L / D)
5.9 x 5.9 / 5.9 in.
Filling volume 3.5 ... 5 l
Dimensions
(W × L × H)
9.1 x 15 x 15 in.
C-BT5
Order No. 9 011 305.33
Working temperature range +20 ... +100 °C
Temperature stability ±0.03 °C
Heating capacity 2 kW
Usable bath opening
(W x L / D)
5.9 x 5.9 / 5.9 in.
Filling volume 3.5 ... 5 l
Dimensions
(W × L × H)
9.1 x 15 x 15 in.
C-BT5
Order No. 9 011 305.04
Working temperature range +20 ... +100 °C
Temperature stability ±0.03 °C
Heating capacity 2 kW
Usable bath opening
(W x L / D)
5.9 x 5.9 / 5.9 in.
Filling volume 3.5 ... 5 l
Dimensions
(W × L × H)
9.1 x 15 x 15 in.
C-BT5
Order No. 9 011 305.04
Working temperature range +20 ... +100 °C
Temperature stability ±0.03 °C
Heating capacity 2 kW
Usable bath opening
(W x L / D)
5.9 x 5.9 / 5.9 in.
Filling volume 3.5 ... 5 l
Dimensions
(W × L × H)
9.1 x 15 x 15 in.
C-BT5
Order No. 9 011 305.05
Working temperature range +20 ... +100 °C
Temperature stability ±0.03 °C
Heating capacity 2 kW
Usable bath opening
(W x L / D)
5.9 x 5.9 / 5.9 in.
Filling volume 3.5 ... 5 l
Dimensions
(W × L × H)
9.1 x 15 x 15 in.
C-BT5
Order No. 9 011 305.05
Working temperature range +20 ... +100 °C
Temperature stability ±0.03 °C
Heating capacity 2 kW
Usable bath opening
(W x L / D)
5.9 x 5.9 / 5.9 in.
Filling volume 3.5 ... 5 l
Dimensions
(W × L × H)
9.1 x 15 x 15 in.
C-BT5
Order No. 9 011 305.13
Working temperature range +20 ... +100 °C
Temperature stability ±0.03 °C
Heating capacity 2 kW
Pump capacity flow rate 17 l/min
Pump capacity flow pressure 6.2 bar
Usable bath opening
(W x L / D)
5.9 x 5.9 / 5.9 in.
Filling volume 3.5 ... 5 l
Dimensions
(W × L × H)
9.1 x 15 x 15 in.

Product Features

  • Models for internal applications
  • Very quiet
  • for internal applications
  • Precise temperature control
Dimensions and volumes
Dimensions
(W × L × H)
9.1 x 15 x 15 in.
Filling volume 3.5 ... 5 l
Weight 10.6 lbs
Temperature values
Working temperature range +20 ... +100 °C
Temperature stability ±0.03 °C
Setting the resolution of the temperature display 0.1 °C
Temperature display resolution 0.01 ... 0.1 °C
Ambient temperature +5 ... +40 °C
Data at mains voltage / frequency:
230V/60Hz (Schuko Plug - CEE 7/4 Plug Type F)
Performance values
Heating capacity 0.8 kW
Viscosity max. 1 cST
Circulation capacity flow rate 6 l/min
Performance values
Heating capacity 0.8 kW
Viscosity max. 1 cST
Circulation capacity flow rate 6 l/min
Performance values
Heating capacity 1 kW
Viscosity max. 1 cST
Circulation capacity flow rate 6 l/min
Performance values
Heating capacity 1 kW
Viscosity max. 1 cST
Circulation capacity flow rate 6 l/min
Performance values
Heating capacity 2 kW
Viscosity max. 1 cST
Circulation capacity flow rate 6 l/min
Performance values
Heating capacity 2 kW
Viscosity max. 1 cST
Circulation capacity flow rate 6 l/min
Performance values
Heating capacity 2 kW
Viscosity max. 1 cST
Circulation capacity flow rate 6 l/min
Performance values
Heating capacity 2 kW
Viscosity max. 1 cST
Circulation capacity flow rate 6 l/min
Performance values
Heating capacity 2 kW
Viscosity max. 1 cST
Circulation capacity flow rate 6 l/min
Performance values
Heating capacity 2 kW
Viscosity max. 1 cST
Circulation capacity flow rate 6 l/min
Performance values
Heating capacity 2 kW
Viscosity max. 1 cST
Circulation capacity flow rate 6 l/min
Performance values
Heating capacity 2 kW
Viscosity max. 1 cST
Circulation capacity flow rate 6 l/min
Performance values
Heating capacity 2 kW
Pump capacity flow rate 17 l/min
Pump capacity flow pressure 6.2 bar
Bath
Bath tank Polycarbonat
Usable bath opening
(W x L / D)
5.9 x 5.9 / 5.9 in.
Other
Classification
according to DIN12876-1
Classification I (NFL)
IP Code
according to IEC 60529
IP 21
Pump type Immersion Pump
Electronics
Temperature control PID1
Absolute temperature calibration 1 Point Calibration
Temperature displayTemperature display LED
Temperature settingTemperature setting Keypad
Available voltage versions
100-115V/50-60Hz Nema N5-15 Plug 9011305.22
230V/50-60Hz CN Plug 9011305.33.chn
230V/50-60Hz Schuko Plug - CEE 7/4 Plug Type F 9011305.33
230V/50-60Hz UK Plug Type BS1363A 9011305.04
230V/50-60Hz CH Plug Type SEV 1011 9011305.05
230V/60Hz Schuko Plug - CEE 7/4 Plug Type F 9011305.13
